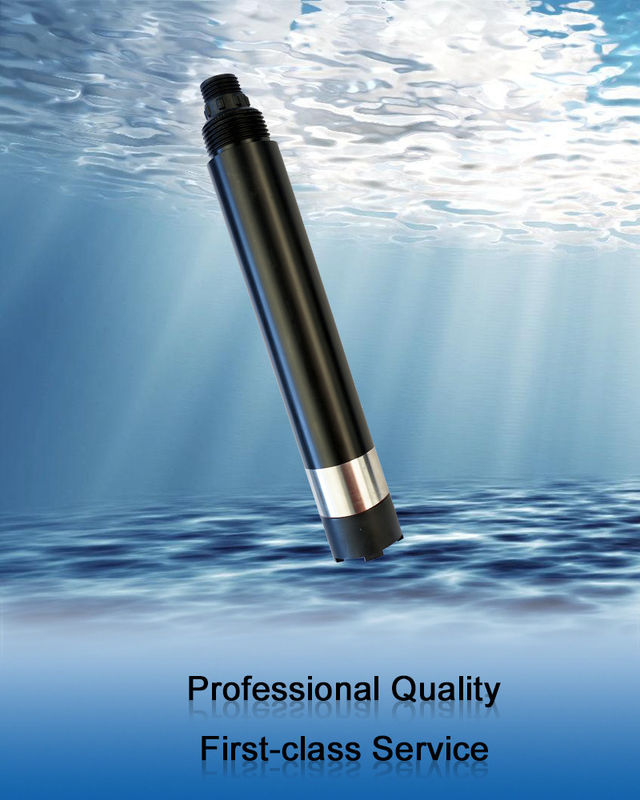

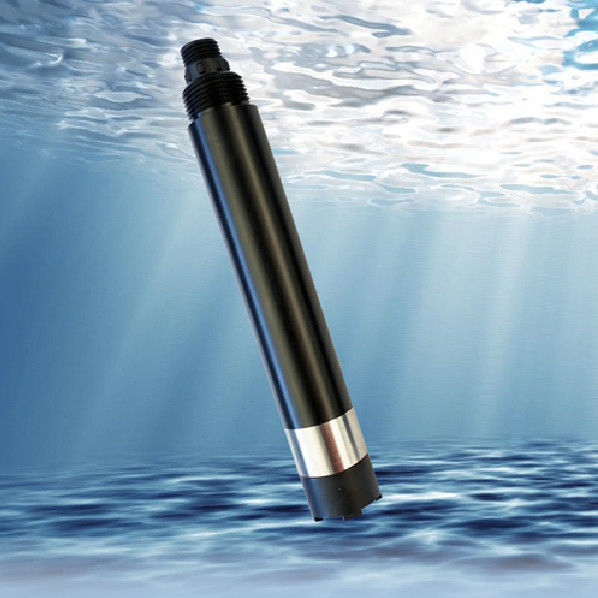

On-line-Fluoreszenz aufgelöster Sensor des Sauerstoff-KFDO310 keine Elektrolyte keine Polarisation kein Bedarf, Sauerstoff zu verbrauchen

On-line-Fluoreszenz aufgelöster Sensor des Sauerstoff-KFDO310 keine Elektrolyte keine Polarisation kein Bedarf, Sauerstoff zu verbrauchen

Herkunftsort:

China

Markenname:

kacise

Zertifizierung:

CE

Modellnummer:

KFDO310

Kontakt mit uns
Bitte um ein Angebot
Einzelheiten zum Produkt
Messendes Prinzip:
Fluoreszenz
Reichweite:
0 ー 20 mg/l (0 ー 200% Sättigung, °C) 25
Entschließung:
0,01 mg/l, 0,1 °C
Präzision:
± 2% f.s. , ± 0,5 °C
Temperaturausgleich:
Automatischer Temperaturausgleich (PT1000)
Ausgabemodus:
RS-485 Bus, Modbus-RTUprotokoll
Zahlungs- und Versandbedingungen
Min Bestellmenge
0-100
Preis
$0-$2000
Verpackung Informationen
Allgemeines Paket oder Gewohnheitspaket
Lieferzeit
3-10DAYS
Zahlungsbedingungen
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit
100
Beschreibung des Produkts

1.Principle

KFDO310 integrated on-line fluorescence dissolved oxygen sensor is designed and made based on the quenching principle of excited fluorescence of specific substances in physics. The blue light from the light-emitting diode illuminates the fluorescent material on the inner surface of the fluorescent cap. The fluorescent material on the inner surface is excited and emits red light. By detecting the phase difference between the red light and the blue light, and comparing it with the internal calibration value, the concentration of oxygen molecule can be calculated, and the final value can be output by temperature automatic compensation.

2.Feature

No electrolytes, no polarization

No need to consume oxygen, not affected by the flow rate

Built-in temperature sensor, automatic temperature compensation

Free from chemicals like sulfides

Small drift, fast response, more accurate measurement

Maintenance-free, long service life, lower use cost

Fluorescent caps are easy to replace

RS-485 interface, Modbus-RTU protocol

3.Technical Specifications

Model number KFDO310
Measuring principle fluorescence
Range 0ー20 mg/L (0ー200% saturation, 25 °C)
Resolution 0.01 mg/l, 0.1 °C
Precision ± 2% f.s. , ± 0.5 °C
Temperature compensation Automatic temperature compensation (PT1000)
Output mode RS-485 bus, Modbus-RTU protocol
Working conditions 0ー45 °C, < 0.2 mpa
Storage temperature - 5 ~ 65 °C
Installation mode Immersion mounting
Cable length 5 meters, other length can be customized
Power consumption < 0.05 W
Power supply 12 ~ 24 VDC ± 10%
Protection level IP68
Calibration Two-point calibration
Fluorescent cap life Guaranteed Use for one year (under normal use)
Material for sensor housing Pom and 316L stainless steel


4.Dimensional Drawing



On-line-Fluoreszenz aufgelöster Sensor des Sauerstoff-KFDO310 keine Elektrolyte keine Polarisation kein Bedarf, Sauerstoff zu verbrauchen 0









5.Installation and Electrical Connection

Installs

On-line-Fluoreszenz aufgelöster Sensor des Sauerstoff-KFDO310 keine Elektrolyte keine Polarisation kein Bedarf, Sauerstoff zu verbrauchen 1

The temperature sensing part should be immersed below the liquid surface to avoid collision with the film head surface. The head part of the membrane should be free from sediment.
