Name: Proline Promass S 100 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass S 100
Price: 2,540.00 USD
Availability: InStock

Zu Hause > produits > Elektromagnetischer Strömungsmesser >

Proline Promass S 100 Coriolis flowmeter

Proline Promass S 100 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for liquids

Herkunftsort:

Schweiz

Markenname:

Endress+Hauser

Zertifizierung:

Modellnummer:

Proline Promass S 100

Kontakt mit uns

Bitte um ein Angebot

Proline Promass S 100 Coriolis flowmeter

Einzelheiten zum Produkt

Messbereich:

0 bis 70 000 kg/h (0 bis 2570 lb/min)

Max. Prozessdruck:

PN 40, Klasse 150, 20K

Mittlerer Temperaturbereich:

¥50 bis +150 °C (¥58 bis +302 °F)

Umgebungstemperaturbereich:

Standard: –40 bis +60 °C (–40 bis +140 °F)

Sensor, der Material unterbringt:

1.4301 (304), korrosionsbeständig

Übermittler, der Material unterbringt:

Kompakt: AlSi10Mg, beschichtet

Hervorheben:

Proline Promass S 100 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for liquids

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 ARBEITSTAGE

Verwandte Produkte

Proline Promass S 300 Coriolis flowmeter

Beste Preis erhalten

Proline Promass P 500 Coriolis flowmeter

Beste Preis erhalten

Proline Promass Q 300 Coriolis flowmeter

Beste Preis erhalten

Proline t-mass F 500 thermal mass flowmeter

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

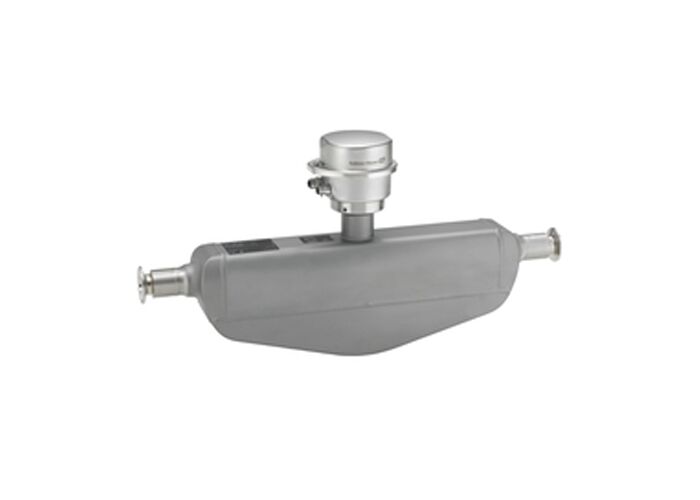

Proline Promass S 100 Coriolis Flowmeter

Easy-to-clean flowmeter with self-drainable single-tube system and an ultra-compact transmitter. Dedicated to applications requiring optimal cleanability under hygienic conditions.

Field of Application

Promass S is at the forefront in hygienic design - Endress+Hauser's industry-optimized measurement solution meets all the hygienic requirements for installation in the Food and Beverage industry. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Designed for applications where space is a premium, Promass S 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers.

Key Benefits

Reduced installation costs - fully self-drainable tube design enables compact horizontal mounting
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no in/outlet run needs
Space-saving transmitter - full functionality on smallest footprint
Time-saving local operation without additional software and hardware - integrated web server
Integrated verification - Heartbeat Technology

Sensor Features

Increased process safety - easily cleanable and fully self-drainable tube design
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no in-/outlet run needs
Large range of hygienic process connections
3-A and EHEDG conform
Fast recovery from CIP/SIP

Transmitter Features

Space-saving transmitter - full functionality on the smallest footprint
Time-saving local operation without additional software and hardware - integrated web server
Integrated verification - Heartbeat Technology
Robust, ultra-compact transmitter housing
Highest degree of protection: IP69
Local display available

Technical Specifications

Measuring Principle	Coriolis
Nominal Diameter Range	DN 8 to 50 (⅜ to 2")
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. Measurement Error	Mass flow (liquid): ±0.10 % Volume flow (liquid): ±0.10 % Density (liquid): ±0.0005 g/cm³
Measuring Range	0 to 70,000 kg/h (0 to 2,570 lb/min)
Max. Process Pressure	PN 40, Class 150, 20K
Medium Temperature Range	-50 to +150 °C (-58 to +302 °F)
Ambient Temperature Range	Standard: -40 to +60 °C (-40 to +140 °F) Option: -50 to +60 °C (-58 to +140 °F)

Materials & Construction

Wetted Materials	Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); 1.4404 (316/316L)
Sensor Housing Material	1.4301 (304), corrosion resistant
Transmitter Housing Material	Compact: AlSi10Mg, coated Compact/ultra-compact: 1.4301 (304)

Electrical & Communication

Outputs	4-20 mA HART (active) Pulse/frequency/switch output (passive)
Inputs	None
Digital Communication	HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power Supply	DC 20 to 30 V
Display/Operation	4-line backlit display available (no local operation) Configuration via web browser and operating tools possible

Approvals & Certifications

Hazardous Area	ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
Product Safety	CE, C-Tick, EAC marking
Metrological	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015
Pressure	PED, CRN
Material	3.1 material
Hygienic	3-A, EHEDG, cGMP
