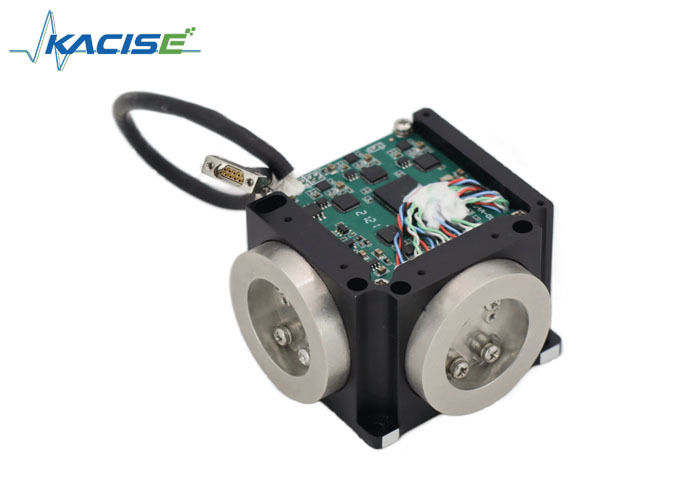

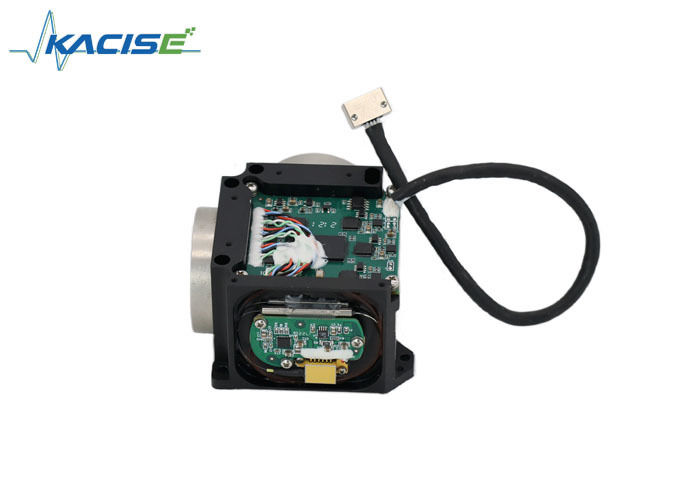

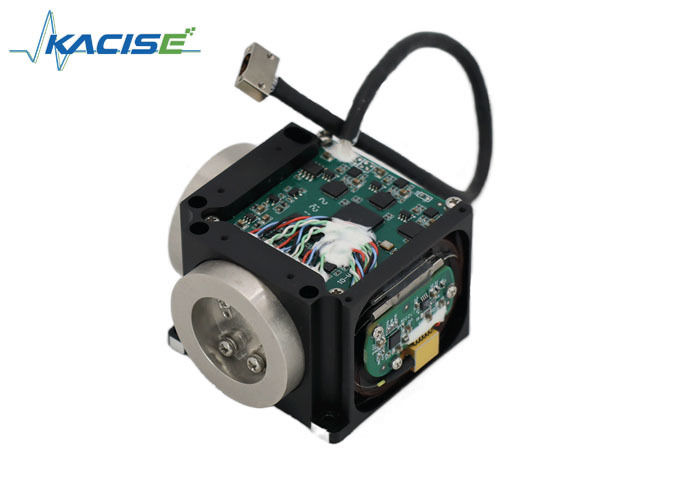

Name: KSGYR312F Three Axis Fiber Optic Gyroscope 5V 71.5×68×45mm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR312F
Price: 431.00 USD
Availability: InStock

Zu Hause > produits > Elektronischer Gyroskopsensor >

KSGYR312F Three Axis Fiber Optic Gyroscope 5V 71.5×68×45mm

three axis fiber optic gyroscope 5V

fiber optic gyroscope 71.5×68×45mm

three axis gyroscope with warranty

Place of Origin:

CHINA

Markenname:

KACISE

Zertifizierung:

Model Number:

KSGYR312F

Kontakt mit uns

Bitte um ein Angebot

KSGYR312F Three Axis Fiber Optic Gyroscope 5V 71.5×68×45mm

Einzelheiten zum Produkt

Supply voltage:

+5V

Dimensions:

71.5×68×45mm

Start time:

≤3s

Bias (100s smooth, fix temperature):

≤0.1°/h

Power dissipation (full temperature):

<4W

Weight:

<320g

Hervorheben:

three axis fiber optic gyroscope 5V

fiber optic gyroscope 71.5×68×45mm

three axis gyroscope with warranty

Zahlungs- und Versandbedingungen

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Verwandte Produkte

Gyroskop mit geringer Leistung, kann auf Roboter angewendet werden, Lagertemperatur -65 ~ +125 °C), Gewicht ≤40 g

Beste Preis erhalten

Bias-Drift ≤0,1°/H Gyrostation mit ±5V Versorgungsspannung für genaue Navigation und UAV

Beste Preis erhalten

Gyroskop/Winkelgeschwindigkeitssensor/Verwendet zur Messung der Winkelgeschwindigkeit in Richtung der empfindlichen Achse

Beste Preis erhalten

Inertienavigationssystem für Luftfahrzeughebehilfe mit einem Gewicht ≤ 2,0 kg

Beste Preis erhalten

Kontakt mit uns

86--17719566736

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

KSGYR312F Three Axis Fiber Optic Gyroscope

Product Overview

The KSGYR312F is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along three sensitive axes. Utilizing digital closed-loop detection technology, it precisely extracts optical path differences caused by external angular velocity, providing real-time angular velocity signal detection.

Key Attributes

Attribute	Value
Supply voltage	+5V
Dimensions	71.5×68×45mm
Start time	≤3s
Bias (100s smooth, fix temperature)	≤0.1°/h
Power dissipation (full temperature)	<4W
Weight	<320g

Product Features

Accurately measures angular velocity of moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Instantaneous startup capability
Simple, robust structure
Simultaneous three-axis angular velocity measurement

Applications

Photoelectric elevator systems
Flight control platforms
Strapdown inertial navigation
Optical and photographic instruments
Platform stabilizers
Inertial measurement instruments

Technical Specifications

Power Supply Parameters

Supply voltage

+5V

Performance Characteristics

Dimensions	71.5×68×45mm
Start time	≤3s
Bias (100s smooth, fix temperature)	≤0.1°/h
Bias stability (100s smooth -45°C~+70°C)	≤0.5°/h
Bias repeatability	≤0.1°/h
Random walk	≤0.01°/h1/2
Scale factor non-linearity	≤20ppm
Scale factor repeatability	≤10ppm
Dynamic range	±500°/s
Power dissipation (full temperature)	<4W
Weight	<320g

Environmental Specifications

Operate temperature	-45°C～+70°C
Storage temperature	-50°C～+80°C

Dimensions
