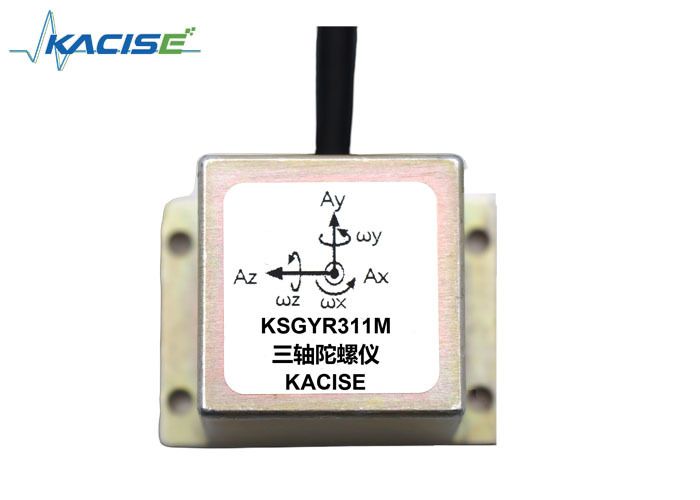

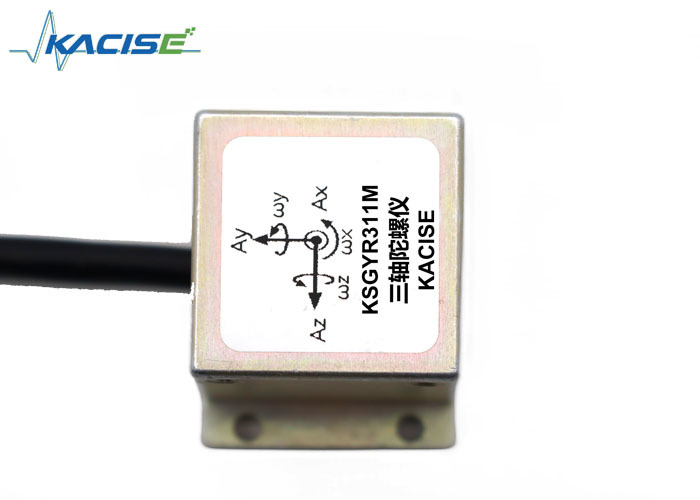

KSGYR311M Triaxial Universal Angular Rate Gyro

The KSGYR311M series three-axis universal angular rate gyro is developed by Kacise for measuring three-axis angular rates. Each axis utilizes MEMS technology chips, offering high performance, low cost, reliability, and rugged packaging with Self-Test functionality.

The KSGYR311M operates on the resonator gyro principle. Two polysilicon sensitive structures, each containing a high-frequency vibrating frame, are electrostatically driven to resonate. The frame's outer ends form a capacitance-sensitive structure that detects Coriolis motion from angular rates, generating an electrical signal processed through amplification and modulation stages to output a proportional angular rate signal.

• Low power consumption
• Wide operating temperature range
• Broad bandwidth
• Compact size
• DC input/output
• Fast startup
• High performance-to-cost ratio

• Automotive electronics
• Aircraft guidance and control
• Attitude reference systems
• Platform stabilization
• Robotics and antenna stabilization
• Camera and digital camera gyros
