FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

900-2500 nm wavelength range FT-NIR Analyzer

0.005 cm⁻¹ wavenumber accuracy FT-NIR Analyzer

0.007 cm⁻¹ wavenumber resolution FT-NIR Analyzer

Markenname:

Yokogawa

Modellnummer:

NR800

Kontakt mit uns
Bitte um ein Angebot
Einzelheiten zum Produkt
Prinzip:
Fourier - Transformation in der Nähe des Infrarotanalysators über Faser - Optiksonde oder ein einzel
Wellenlängenbereich:
900 - 2500 nm
Genauigkeit der Wellenzahl:
0,005 cm⁻¹
Wellenzahlauflösung:
0,007 cm⁻¹
Nummer des Kanals:
4, 8, 16, 32, 64 cm⁻¹ wählbar
Messzeit:
4 Sekunden als minimal (abhängig von der Anzahl der Mittelung und Messkanäle sowie Messkanäle)
Hervorheben:

900-2500 nm wavelength range FT-NIR Analyzer

,

0.005 cm⁻¹ wavenumber accuracy FT-NIR Analyzer

,

0.007 cm⁻¹ wavenumber resolution FT-NIR Analyzer

Zahlungs- und Versandbedingungen
Min Bestellmenge
1pcs
Verpackung Informationen
Jedes Gerät verfügt
Lieferzeit
5-8 Arbeitstage
Zahlungsbedingungen
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit
1000 Stück/Stücke pro Woche verhandelbar
Beschreibung des Produkts

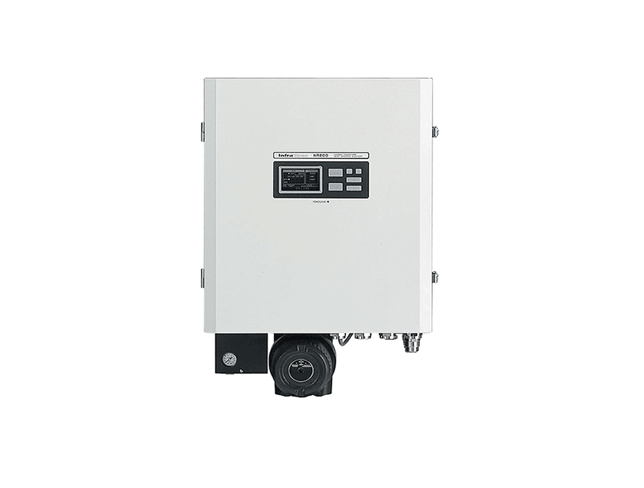

Fourier Transform Near-Infrared Analyzer (FTNIR)

The InfraSpec NR800 is a FT-NIR analyzer offering unparalleled reliability and stability for a wide range of process and laboratory applications from Yokogawa. Its high wavelength resolution, outstanding accuracy and wide scanning range deliver a new level of process information, opening up new possibilities.

Direct transfer of calibration models from laboratory to process, or among processes, is supported. The NR800 features user-friendly operation with intuitive software, built on Yokogawa's 50+ years of R&D in analyzer systems and process measurement expertise.

Technical Specifications
Analyzer Item Description
Principle Fourier-transform Near Infrared analyzer via fiber-optic probe or single path
Wavelength range 900 - 2500 nm
Wavenumber accuracy 0.005 cm⁻¹
Wavenumber resolution 0.007 cm⁻¹
No. of channel 4, 8, 16, 32, 64 cm⁻¹ selectable
No. of measurement Max 12 channels (Max 64 optical multiplexers)
Max 4 channels with no optical analyzer
Measurement time 4 seconds minimum (varies by averaging/measuring channels)
No. of cutter detection items Max 12 per channel (Max 48 per analyzer)
Chemometrics software VERSOR DIRRECT™
Communication interface RS422 Modbus; 2 channels (DCS, IO unit)
Ethernet: 1 channel (Engineering PC)
Contact output System alarm; 1 (Annunciator; 1 (Explosion-proof model)
Power fail; 1, System alarm; 1 (Non-explosion-proof model)
Contact Input Stream identification: 8
Measurement enable: 4
Enclosure General purpose
Model N8607G: FM approved. Type X-purging and explosion-proof for Class I, Div1, Group B, C, D, T5.
Model N8608G: TIS certified. Suitable for TIS Ex IIB T5 and Temperature Class T5. Suitable for ATEX Ex II 2G Ex tb
Power supply Approx. 250 VA
Classification of laser product Class 1 Laser Product (IEC 60825-1:2014, GB/T 7247.1-2020)
Environment temp., RH -10 to 40°C, 0 to 95% RH
Weight General-purpose model: Approx. 50 kg
Explosion-proof model: Approx. 85 kg
For detailed specifications, please refer to document GS12V04303-01E
