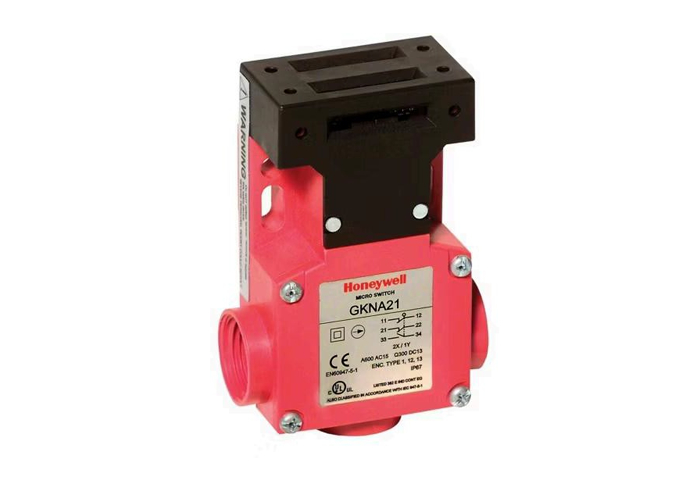

Name: GKN Series Key-Operated Safety Interlock Switch with Three Conduit Entries 20 mm or 0.5-14 NPT and 3NC or 2NC/1NO Contacts
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GKN-Serie
Price: 152.00 USD
Availability: InStock

Zu Hause > produits > Präzisionsdrucksensor >

GKN Series Key-Operated Safety Interlock Switch with Three Conduit Entries 20 mm or 0.5-14 NPT and 3NC or 2NC/1NO Contacts

Three Conduit Entries Safety Interlock Switch

20 mm or 0.5-14 NPT Key-Operated Safety Switch

3NC or 2NC/1NO Contacts GKN Series Switch

Markenname:

Honeywell

Modellnummer:

GKN-Serie

Kontakt mit uns

Bitte um ein Angebot

GKN Series Key-Operated Safety Interlock Switch with Three Conduit Entries 20 mm or 0.5-14 NPT and 3NC or 2NC/1NO Contacts

Einzelheiten zum Produkt

Elektrische Verbindung:

Drei Kanäle, 20 mm oder 0,5–14 NPT

Beschreibung:

Mehrfach zugänglicher, schlüsselbetätigter Sicherheitsschalter

Zertifizierungen von Agenturen:

cULus, CE, UKCA, CCC

Wohnmaterial:

mit einem Durchmesser von nicht mehr als 0,01 mm

Material des Betätigerschlüssels:

Edelstahl

Hervorheben:

Three Conduit Entries Safety Interlock Switch

20 mm or 0.5-14 NPT Key-Operated Safety Switch

3NC or 2NC/1NO Contacts GKN Series Switch

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 STÜCK

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 Werktage

Zahlungsbedingungen

L/C, D/A, D/P, Moneygram, Western Union, t/t

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Beste Preis erhalten

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Beste Preis erhalten

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Beste Preis erhalten

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Honeywell GKN Series Multi-use, multi-option. cULus, CE, CCC, S-mark, SIL3. IP67. NEMA 1, 4X (indoor), 12, 13. Silver contacts

The MICRO SWITCH GKN Series safety interlock switches provide superior reliability in a compact, cost-effective package size. Six different types of actuator keys are available. The GKN Series conforms to IEC 60947-5-1 and carries cULus, CE, and CCC approvals.

VALUE TO CUSTOMERS

Common mounting footprint for ease of installation
Double insulated housing, no ground required
Large wiring cavity with three conduit entries

FEATURES

Red switch body for easy safety recognition
Four different styles of stainless steel actuator keys
Three conduits with 0.5-14 NPT or M20 thread connection
Positive opening action of normally closed contacts to EN/IEC 60947-5-1-3 specification
Three contacts: 2NC/1NO or 3NC
Switch chamber environmentally sealed to IP67 and NEMA 1, 4X (indoor), 12, and 13
CCC, CE, UKCA and UL certifications
Designed and agency evaluated for safety functions up to and including a SIL3 level

POTENTIAL APPLICATIONS

Safety interlock for guards or doors on equipment and machinery
Designed for hinge or sliding guards or doors

DIFFERENTIATION

Up to three NC contacts for control, signaling, or contact redundancy
Four actuator key entry positions
Optional flexible key for small door radius
Optional funnel key where door misalignment may occur

TABLE 1. SPECIFICATIONS
Characteristic	Parameter
Description	Multi-entry, key-operated safety switch
Agency certifications	cULus, CE, UKCA, CCC
Housing material	Glass-filled nylon
Actuator key material	Stainless steel
Electrical connection	Three conduits, 20 mm or 0.5-14 NPT
Contact/switch options ¹	3NC or 2NC/1NO
Contact type	Slow action break-before-make (BBM), or slow action
Contact design	Double break, electrically separated (Zb)
Contact material	Silver alloy
Electrical ratings	See table 2 below
Utilization category	AC-15, A600; DC-13, Q300
Rated operational voltage (Ue)	120 Vac, 240 Vac, 600 Vac; 125 Vdc, 250 Vdc
Rated operational current (Ie)	6 A, 3 A, 1.2 A; 0.55 A, 0.27 A
Thermal current (Ith)	10 A
Rated insulation (Ui)	600 V
Rated impulse withstand voltage (Uimp)	2500 V
Short circuit protection device (SCPD)	Class J fuse (10 A/600 V)
Pollution degree	2 (micro-environment, inside enclosure) 3 (macro-environment, installation environment)
Environmental sealing	IP67, NEMA 1, 4X (indoor), 12, and 13
Operating temperature	-25 °C to 70 °C [-13 °F to 158 °F]
Shock	50 G per IEC 60068-2-27
Vibration	10 G per IEC 60068-2-6
MCTF (Mechanical life)	>1,000,000 cycles with single-sided confidence of 100%
MCTF (Electrical life)	>25,000 cycles with single-sided confidence of 75%
SIL Capability ²	SIL 2 capable with HFT³ = 0; SIL 3 capable with HFT³ =1
Proof test interval	1 year

¹ All normally closed contacts are positive opening.

² Safety Integrity Level

³ HFT (Hardware Fault Tolerance)

TABLE 2. ELECTRICAL RATINGS
ac	dc
A600	AC15	Q300	DC13
Ue	Ie	Ue	Ie
Volts	Amps	Volts	Amps
120	6	125	0.55
240	3	250	0.27
600	1.2	-	-
