Name: Proline Promass F 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolin Promass F 500
Price: 2,540.00 USD
Availability: InStock

Zu Hause > produits > Elektromagnetischer Strömungsmesser >

Proline Promass F 500 Coriolis flowmeter

Proline Promass F 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

Markenname:

Endress+Hauser

Zertifizierung:

Modellnummer:

Prolin Promass F 500

Kontakt mit uns

Bitte um ein Angebot

Proline Promass F 500 Coriolis flowmeter

Einzelheiten zum Produkt

Messbereich:

0 bis 2 200 000 kg/h (0 bis 80 840 lb/min)

Max. Prozessdruck:

PN 100, Klasse 600, 63k

Übermittler, der Material unterbringt:

AlSi10Mg, beschichtet; 1.4409 (CF3M) ähnlich 316L; Polycarbonat

Genehmigungen für gefährliche Gebiete:

Die Kommission kann die Mitgliedstaaten auffordern, die erforderlichen Maßnahmen zu ergreifen.

Produktsicherheit:

CE-Kennzeichen, C-Kennzeichen, EAC-Kennzeichnung

Schiffszulassungen und Zertifikate:

LR-Zulassung, DNV-Zulassung, ABS-Zulassung, BV-Zulassung, CCS-Zulassung

Hervorheben:

Proline Promass F 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 ARBEITSTAGE

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

Proline Promass S 300 Coriolis flowmeter

Beste Preis erhalten

Proline Promass P 500 Coriolis flowmeter

Beste Preis erhalten

Proline Promass Q 300 Coriolis flowmeter

Beste Preis erhalten

Proline t-mass F 500 thermal mass flowmeter

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

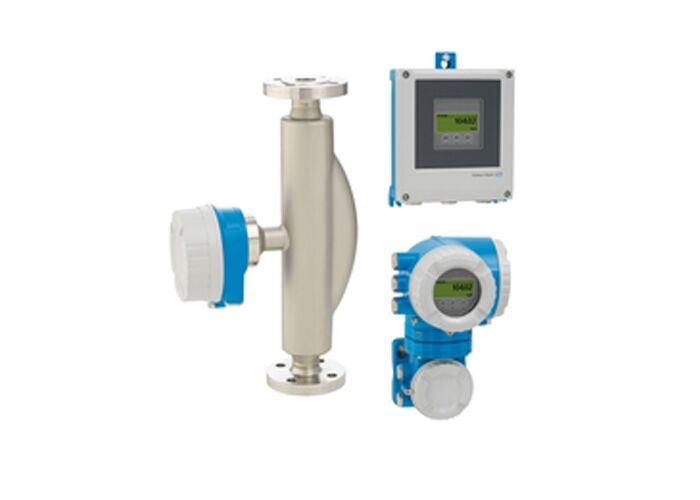

Proline Promass F 500 Coriolis Flowmeter

The Promass F 500 is a premium Coriolis flowmeter offering exceptional accuracy and robustness. Available as a remote version with up to 4 I/Os, it delivers highest measurement performance for liquids and gases under demanding process conditions.

Key Features

Highest Process Safety: Immune to fluctuating and harsh environments
Multivariable Measurement: Flow, density, temperature with fewer process measuring points
Space-Saving Installation: No inlet/outlet run requirements
Advanced Diagnostics: Full access to process and diagnostic information

Technical Specifications

Measuring Principle	Coriolis
Nominal Diameter Range	DN 8 to 250 (³⁄₈ to 10")
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Measuring Range	0 to 2,200,000 kg/h (0 to 80,840 lb/min)
Max. Process Pressure	PN 100, Class 600, 63K

Measurement Accuracy

Mass Flow (Liquid)	±0.10% (standard), ±0.05% (option)
Volume Flow (Liquid)	±0.10%
Mass Flow (Gas)	±0.25%
Density (Liquid)	±0.0005 g/cm³

Temperature Ranges

Medium Temperature	Standard: -50 to +150 °C (-58…+302 °F) Option: -50 to +240 °C (-58…+464 °F) High Temperature Option: -50 to +350 °C (-58…+662 °F) Option: -196 to +150 °C (-320 to +302 °F)
Ambient Temperature	Standard: -40 to +60 °C (-40 to +140 °F) Option: -60 to +60 °C (-76 to +140 °F)

Materials & Construction

Wetted Materials	Measuring Tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022) Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)
Housing Materials	Sensor: Standard 1.4301 (304), corrosion resistant Transmitter: AlSi10Mg, coated; 1.4409 (CF3M); Polycarbonate

Transmitter Features

Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Standard cable between sensor and transmitter
Freely configurable I/O functionality
Integrated verification via Heartbeat Technology

Certifications & Approvals

Hazardous Area

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC

Product Safety

CE, C-tick, EAC marking

Metrological

Calibration performed on accredited facilities (ISO/IEC 17025)
Heartbeat Technology complies with ISO 9001:2015 requirements
MI-005, NTEP, MC, MI-002, PTB

Marine

LR, DNV, ABS, BV, CCS approvals

Pressure

PED, CRN, AD 2000

Material

3.1 material, NACE MR0175/MR0103, PMI, welding tests per EN ISO, ASME, NORSOK

Hygienic

3-A, EHEDG, cGMP
