Name: Proline Promass K 10 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Prolin Promass K 10
Price: 2,540.00 USD
Availability: InStock

Zu Hause > produits > Elektromagnetischer Strömungsmesser >

Proline Promass K 10 Coriolis flowmeter

Proline Promass K flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Markenname:

Endress+Hauser

Zertifizierung:

Modellnummer:

Prolin Promass K 10

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Messbereich:

0 bis 180 000 kg/h (0 bis 6615 lb/min)

Max. Prozessdruck:

PN 40, Klasse 300, 40K

Mittlerer Temperaturbereich:

–40 bis +150 °C (–40 bis +302 °F)

Hervorheben:

Proline Promass K flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 ARBEITSTAGE

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

Proline Promass S 300 Coriolis flowmeter

Beste Preis erhalten

Proline Promass P 500 Coriolis flowmeter

Beste Preis erhalten

Proline Promass Q 300 Coriolis flowmeter

Beste Preis erhalten

Proline t-mass F 500 thermal mass flowmeter

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

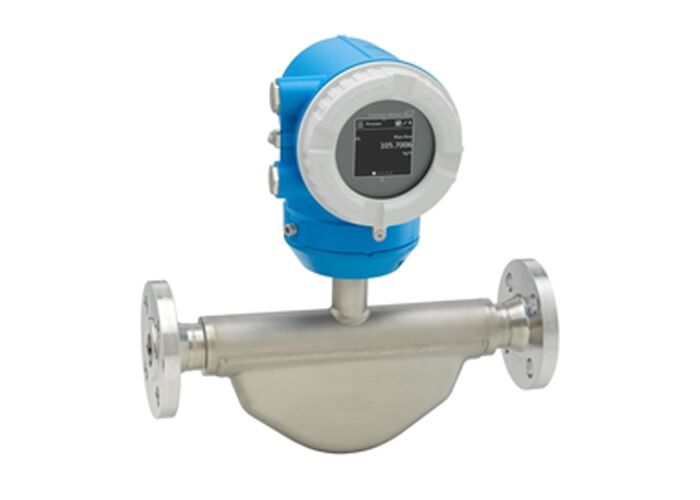

Proline Promass K 10 Coriolis Flowmeter

Flowmeter with minimized total cost of ownership and easy-to-use operation concept for measurement of liquids and gases in utility processes and basic applications.

Field of Application

Promass K is the cost-efficient Coriolis solution for elementary mass flow measuring tasks. It provides dependable measurement in basic applications featuring air, gas, fuel and water. With its straightforward hardware and software design, Promass K 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.

Key Features

Measuring principle operates independently of physical fluid properties such as viscosity or density
Measurement of liquids and gases in utility processes and basic applications
Compact dual-tube sensor design
Medium temperature up to +150 °C (+302 °F)
Process pressure up to 100 bar (1450 psi)
System integration with HART, IO-Link, Modbus RS485
Flexible operation with app and optional display

Technical Specifications

Measuring Principle	Coriolis
Nominal Diameter Range	DN 8 to 80 (⅜ to 3")
Measured Variables	Mass flow, temperature, Density (option), volume flow, corrected volume flow
Max. Measurement Error	Mass flow (liquid): ±0.5% (standard), ±0.15% (option) Mass flow (gas): ±0.75%
Measuring Range	0 to 180,000 kg/h (0 to 6,615 lb/min)
Max. Process Pressure	PN 40, Class 300, 40K
Medium Temperature Range	-40 to +150 °C (-40 to +302 °F)
Ambient Temperature Range	Standard: -20 to +60 °C (-4 to +140 °F)
Wetted Materials	Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L)
Sensor Housing Material	Stainless steel 1.4301 (304)
Transmitter Housing Material	AlSi10Mg, coated
Degree of Protection	Standard: IP66/67, Type 4X enclosure
Display/Operation	2.4" LCD display with touch & auto rotate; Configuration and operation via Bluetooth technology possible
Outputs	4-20 mA HART (active/passive), Pulse/frequency/switch output, Modbus RS485, 4-20 mA
Digital Communication	HART, MODBUS RS485, IO-Link
Power Supply	DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Benefits

Easy integration into plant infrastructure with IO-Link
Cost-effective device for basic process and hygienic applications (3-A and cGMP, EHEDG)
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no inlet/outlet run needs
Optimum usability - display with touch screen or operation with mobile devices and SmartBlue app
Simple, time-saving commissioning - guided parameterization in advance and in the field
Integrated verification - Heartbeat Technology

Approvals and Certifications

Hazardous Area Approvals

ATEX IECEx cCSAus EAC NEPSI INMETRO IND Ex JPN UK Ex KC

Metrological Approvals

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 - Section 7.1.5.2 a (TÜV SÜD attestation)

Pressure Approvals

CRN, PED

Material Certificates

3.1 material

Hygienic Approvals

EC 1935, FDA, GB4806, cGMP, 3-A
