Name: Proline Promass S 300 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass S 300
Price: 2,540.00 USD
Availability: InStock

Zu Hause > produits > Elektromagnetischer Strömungsmesser >

Proline Promass S 300 Coriolis flowmeter

Proline Promass S 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Herkunftsort:

Schweiz

Markenname:

Endress+Hauser

Zertifizierung:

Modellnummer:

Proline Promass S 300

Kontakt mit uns

Bitte um ein Angebot

Proline Promass S 300 Coriolis flowmeter

Einzelheiten zum Produkt

Messbereich:

0 bis 70 000 kg/h (0 bis 2570 lb/min)

Max. Prozessdruck:

PN 40, Klasse 150, 20K

Mittlerer Temperaturbereich:

¥50 bis +150 °C (¥58 bis +302 °F)

Umgebungstemperaturbereich:

Standard: –40 bis +60 °C (–40 bis +140 °F)

Sensor, der Material unterbringt:

Sensor, der Material unterbringt

Übermittler, der Material unterbringt:

AlSi10Mg, beschichtet; Edelstahl für hygienisches Senderdesign

Hervorheben:

Proline Promass S 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 ARBEITSTAGE

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

Proline Promass S 300 Coriolis flowmeter

Beste Preis erhalten

Proline Promass P 500 Coriolis flowmeter

Beste Preis erhalten

Proline Promass Q 300 Coriolis flowmeter

Beste Preis erhalten

Proline t-mass F 500 thermal mass flowmeter

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

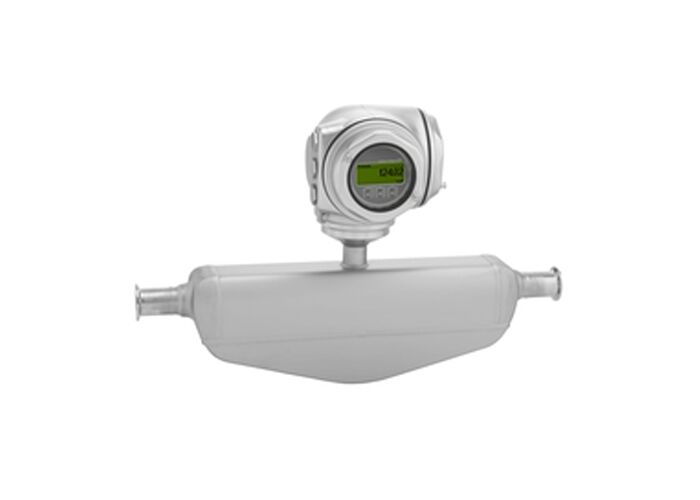

Proline Promass S 300 Coriolis Flowmeter

The Promass S 300 is a high-precision Coriolis flowmeter designed specifically for hygienic applications in the food and beverage industry. Featuring optimal cleanability and a self-drainable single-tube system, it ensures careful fluid treatment while providing exceptional measurement accuracy.

Key Specifications

Measurement Accuracy

Mass flow (liquid): ±0.10%
Volume flow (liquid): ±0.10%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Temperature Range

-50 to +150 °C (-58 to +302 °F)

Max Process Pressure

PN 40, Class 150, 20K

Field of Application

The Promass S is specifically designed for hygienic applications in the food and beverage industry, offering optimal cleanability and process safety. Its compact transmitter provides high flexibility in operation and system integration.

Key Benefits

Increased process safety with easily cleanable, fully self-drainable tube design
Fewer process measuring points through multivariable measurement (flow, density, temperature)
Space-saving installation with no inlet/outlet run requirements
Full access to process and diagnostic information with numerous I/Os and Ethernet
Reduced complexity with freely configurable I/O functionality
Integrated verification through Heartbeat Technology

Technical Features

Sensor Features

Large range of hygienic process connections
3-A and EHEDG compliant
Fast recovery from CIP/SIP processes
Measuring principle operates independently of fluid properties

Transmitter Features

Compact hygienic dual-compartment housing with IP69 rating
Backlit display with touch control and WLAN access
Remote display capability
Up to 3 I/O connections

Detailed Specifications

Nominal Diameter Range	DN 8 to 50 (⅜ to 2")
Wetted Materials	Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); 1.4404 (316/316L)
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Ambient Temperature Range	Standard: -40 to +60 °C (-40 to +140 °F) Option: -50 to +60 °C (-58 to +140 °F)
Housing Materials	Sensor: 1.4301 (304), corrosion resistant Transmitter: AlSi10Mg, coated; stainless steel for hygienic design
Degree of Protection	IP66/67, type 4X enclosure, IP69

Inputs & Outputs

Outputs

3 outputs including: 4-20 mA HART, 4-20 mA WirelessHART, pulse/frequency/switch output, relay output

Inputs

Status input, 4-20 mA input

Communication & Power

Digital Communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals & Certifications

ATEX IECEx cCSAus NEPSI INMETRO EAC UK Ex KC CE 3-A EHEDG cGMP PED CRN

Functional safety according to IEC 61508, applicable in safety-relevant applications per IEC 61511. Calibration performed on accredited facilities (ISO/IEC 17025). Heartbeat Technology complies with ISO 9001:2015 requirements for measurement traceability.
