Name: Proline Prosonic Flow G 500 ultrasonic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Prosonic Flow G 500
Price: 892.00 USD
Availability: InStock

Zu Hause > produits > Ultraschallströmungsmesser >

Proline Prosonic Flow G 500 ultrasonic flowmeter

Proline Prosonic ultrasonic flowmeter

ultrasonic flow meter with warranty

Prosonic Flow G 500 meter

Herkunftsort:

Schweiz

Markenname:

Endress+Hauser

Zertifizierung:

Modellnummer:

Proline Prosonic Flow G 500

Kontakt mit uns

Bitte um ein Angebot

Proline Prosonic Flow G 500 ultrasonic flowmeter

Einzelheiten zum Produkt

Messbereich:

Gas: 0,3 m/s bis 40 m/s

Max. Prozessdruck:

0,7 bis 101 bar a (10,15 bis 1464,88 psi a)

Mittlerer Temperaturbereich:

-50 bis 150 °C (-58 bis +302 °F)

Umgebungstemperaturbereich:

-40 bis 60 °C(-40 bis +140 °F)

Sensor, der Material unterbringt:

Edelstahl, 1.4404 (316/316L), 1.4408/1.4409 (CF3M)

Übermittler, der Material unterbringt:

lSi10Mg, beschichtet; 1.4409 (CF3M) ähnlich 316L

Hervorheben:

Proline Prosonic ultrasonic flowmeter

ultrasonic flow meter with warranty

Prosonic Flow G 500 meter

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 ARBEITSTAGE

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

Proline Prosonic Flow E 100 ultrasonic flowmeter

Beste Preis erhalten

Proline Prosonic Flow G 300 ultrasonic flowmeter

Beste Preis erhalten

Proline Prosonic Flow G 500 ultrasonic flowmeter

Beste Preis erhalten

Proline Prosonic Flow I 400 ultrasonic flowmeter

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

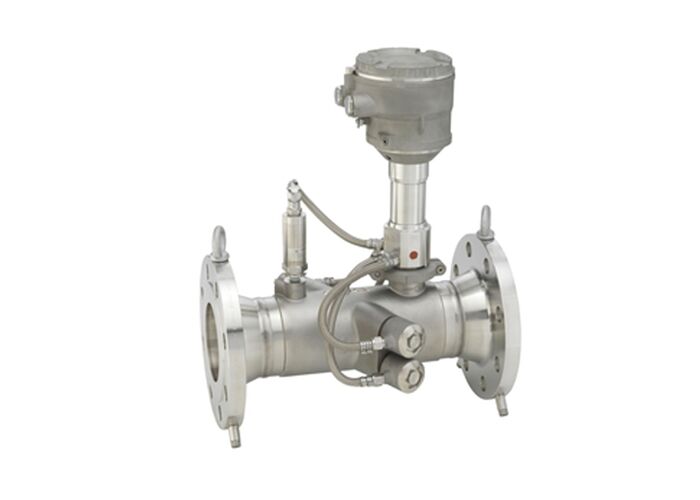

Proline Prosonic Flow G 500 Ultrasonic Flowmeter

Highly robust gas specialist for fluctuating process conditions as remote version with up to 4 I/Os. Flexible device with user-definable gas mixtures for demanding measuring tasks.

Field of Application

For a wide range of gas applications, Prosonic Flow G provides reliable flow measurement, even with wet gas and changing gas properties and compositions. Accurate measurement of natural and process gas in the chemical, oil, and gas industries.

Key Benefits

Flexible device with user-definable gas mixtures for demanding measuring tasks
Maximum reliability even with humid or wet gas - sensor design insensitive to condensate
High-performance process control - real-time pressure- and temperature-compensated values
Efficient solution - multivariable, no pressure loss
Full access to process and diagnostic information - numerous, freely combinable I/Os
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Measuring Principle

Ultrasonic flow measurement unaffected by gas composition

Technical Specifications

Measurement Accuracy

Measurement Type	Accuracy Range	Velocity Range
Volume Flow (Standard)	±1.0% to ±2% o.r.	0.3 to 40 m/s
Volume Flow (Optional Calibration)	±0.5% to ±1.0% o.r.	0.3 to 40 m/s
Corrected Volume Flow (Standard)	±1.2% to ±2.1% o.r.	0.3 to 40 m/s
Corrected Volume Flow (Optional Calibration)	±0.8% to ±1.2% o.r.	0.3 to 40 m/s
Sound Velocity	±0.2% o.r.	-

Operating Ranges

Parameter	Range
Gas Measuring Range	0.3 m/s to 40 m/s
Medium Temperature	-50 to 150 °C (-58 to +302°F)
Medium Temperature (with pressure cell)	-50 to 100 °C (-58 to +212°F)
Process Pressure	0.7 to 101 bar a (10.15 to 1464.88 psi a)
Ambient Temperature	-40 to 60 °C (-40 to +140 °F)

Nominal Diameter Range

DN 25 to 300 (1 to 12")

Measured Variables

Volume flow, corrected volume flow, mass flow, flow velocity, speed of sound, pressure, temperature, density, dynamic viscosity, energy flow, Wobbe index, methane fraction, calorific value, molar mass

Construction Materials

Component	Material
Measuring Tube	1.4408/1.4409 (CF3M)
Transducer	1.4404 (316, 316L, Titan Grade 2)
Sensor Housing	Stainless Steel, 1.4404 (316/316L), 1.4408/1.4409 (CF3M)
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonate

Electrical & Communication

Outputs

4 outputs: 4-20 mA HART (active/passive), 4-20 mA (active/passive), Pulse/frequency/switch output (active/passive), Double pulse output (active/passive), Relay output

Inputs

Status input, 4-20 mA input

Digital Communication

HART, Modbus RS485

Power Supply

AC 100 to 230 V / DC 24 V (non-hazardous area)

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, JPN, EAC, UK Ex, KC
Product Safety: CE, C-tick
Functional Safety: IEC 61508, applicable in safety-relevant applications per IEC 61511
Metrological: Calibration performed on accredited facilities (ISO/IEC 17025), Heartbeat Technology complies with ISO 9001:2015
Pressure: PED, CRN
Material: 3.1 material certificate, NACE MR0175/MR0103

Environmental Protection

Sensor remote version: IP66/67, type 4X enclosure
Transmitter remote version: IP66/67, Type 4X enclosure

Display & Operation

4-line backlit display with Touch Control (operation from outside)
Configuration via local display and operating tools possible
