Pointek CLS200 - Standard Capacitance Level Switch

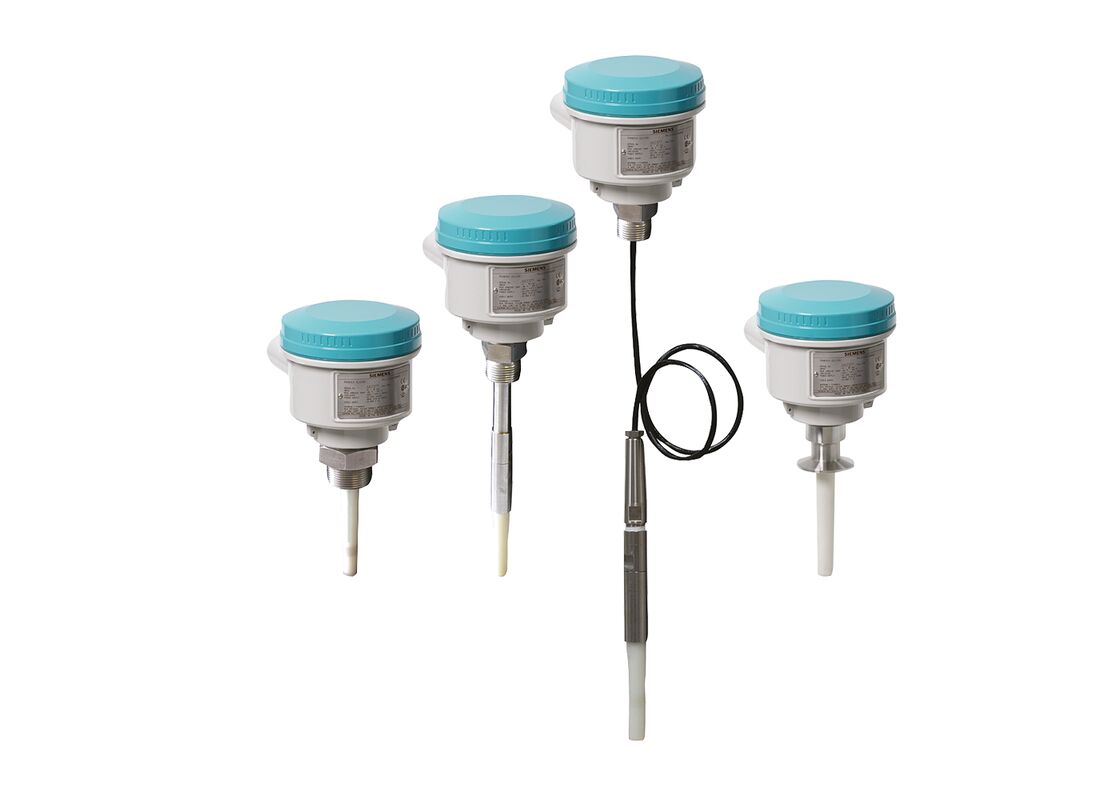

The Pointek CLS200 (standard version) is a versatile inverse frequency shift capacitance level and material detection switch with configurable rod/cable options and output configurations. Ideal for detecting liquids, solids, slurries, foam, and interfaces, this switch features advanced tuning capabilities to ignore buildup on the probe.
Model Numbers: 7ML5631-.....-.... | 7ML5632-.....-.... | 7ML5633-.....-.... | 7ML5634-.....-.... | 7ML5630-.....-....
Key Benefits
- Potted construction protects signal circuit from shock, vibration, humidity, and condensation
- High chemical resistance for demanding industrial environments
- Level detection independent of tank or pipe earth reference
- Insensitive to product buildup due to high frequency oscillation
- Three LED indicators for sensor status, output status, and power
- Suitable for API 2350 compliance requirements
Applications
The Pointek CLS200 standard version features three LED indicators with basic relay and solid-state switch alarms. This universal switch handles solids, liquids, and interface detection applications. The galvanically isolated power supply accepts a wide voltage range (12 to 250 V AC/DC). When used with thermal isolator, the stainless steel and PPS (PVDF optional) probe materials provide temperature ratings up to 125°C (257°F) on process-wetted portions.
The switch detects materials with dielectric constants of 1.5 or higher by monitoring changes in oscillating frequency, with settings for detection before contact or on contact. The CLS200 operates independently of tank walls or pipes, eliminating the need for external reference electrodes in non-conductive vessels like concrete or plastic.
Primary Applications
- Liquids and slurries level detection
- Powders and granules inventory monitoring
- Pressurized vessel applications
- Hazardous area installations
Configuration
Technical Specifications
Mode of Operation:
Inverse frequency shift capacitive level detection
Measuring Principle:
Inverse frequency shift capacitive level detection
Measured Variable:
Change in picoFarad (pF)
Output Specifications
Relay Output:
1 SPDT Form C relay
Max. Contact Voltage:
30 V DC / 250 V AC
Max. Contact Current:
5 A DC / 8 A AC
Max. Switching Capacity:
150 W DC / 2,000 VA AC
Time Delay:
1 ... 60 s
Solid-state Output:
Galvanically isolated
Max. Switching Voltage:
30 V DC / 30 V peak AC
Max. Load Current:
82 mA
Voltage Drop:
< 1 V, typical at 50 mA
Environmental Conditions
Ambient Temperature:
-40 ... +85°C (-40 ... +185°F)
Storage Temperature:
-40 ... +85°C (-40 ... +185°F)
Installation Category:
II
Pollution Degree:
4
Medium Conditions
Compatible Media:
Liquids, bulk solids, slurries and interfaces
Minimum Dielectric Constant:
1.5
Process Temperature (without thermal isolator):
-40 ... +85°C (-40 ... +185°F)
Process Temperature (with thermal isolator):
-40 ... +125°C (-40 ... +257°F)
Process Pressure (rod version):
-1 ... +25 bar g (-14.6 ... +365 psi g)
Process Pressure (cable version):
-1 ... +10 bar g (-14.6 ... +150 psi g)
Process Pressure (sliding coupling version):
-1 ... +10 bar g (-14.6 ... +150 psi g)
Design & Construction
Enclosure Material:
Epoxy-coated aluminum with gasket
Optional Thermal Isolator:
316L stainless steel
Connection:
Removable terminal block, max. 2.5mm²
Degree of Protection:
IP65/Type 4/NEMA 4 (optional IP68)
Cable Inlet:
2 x M20 x 1.5 thread (option: 2 x ½" NPT conduit entry including 1 plugged entry)
Power Supply:
12 ... 250 V AC/DC, 0 ... 60 Hz max. 2 W
Certifications and Approvals
CSA
FM
CE
UKCA
RCM
ATEX
UKEX
Lloyds Register
WHG
VLAREM II
Pattern Approval (China)
SIL
Related Products and Accessories
| Part Number |
Description |
| 7ML1830-1AP |
EASY AIMER II, ALUMINIUM, 3/4 INCH NPT WITH 1 INCH GALVANIZED COUPLING |
| 7ML1830-1AQ |
EASY AIMER II, ALUMINIUM, 3/4 INCH NPT WITH 3/4 - 1 INCH PVC COUPLING |
| 7ML1830-1DL |
SENSGUARD, 3/4" NPT (PPS) for POINTEK CLS100 |
| 7ML1830-1DM |
SENSGUARD, 1" BSPT (PPS) for POINTEK CLS100 |
| 7ML1830-1JA |
CABLE GLAND, 1/2" NPT, General Purpose DIP |
| 7ML1830-1JB |
CABLE GLAND, 1/2" NPT, explosion proof |
| 7ML1830-1JC |
M20 x 1.5 cable gland (general use and dust explosion protection) |
| 7ML1830-1JD |
CABLE GLAND, M20 x 1.5 HF, (EP) |
| 7ML1830-1JE |
Test Magnet |
| 7ML1830-1JF |
AMPLIFIER / POWER SUPPLY DIGITAL VERSION |
| 7ML1830-1JK |
LCD DISPLAY FOR CLS 200, DIGITAL |
| A5E01163672 |
Spare Synprene gasket, enclosure version, for IP65 versions |
| A5E01163673 |
Spare Silicone gasket, enclosure version, for IP68 version |
| A5E01163674 |
CLS200/CLS300/LC300 Spare aluminum blind lid, for standard versions |
| A5E01163676 |
CLS200/300 Spare aluminum lid with window |
| A5E01163677 |
Kit, sensor for cable units, PPS, standard, Viton |
| A5E01163678 |
Kit, sensor for cable units, PPS, digital, Viton |
| A5E01163679 |
Kit, sensor for cable units, PPS, standard, FFKM |
| A5E01163680 |
Kit, Sensor for cable units, PPS, Digital, FFKM |
| A5E01163681 |
Kit, Sensor for cable units, PVDF, Standard, FKM |
| A5E01163682 |
Kit, sensor for cable unit, PVDF, Digital, FKM |
| A5E01163683 |
Kit, sensor for cable unit, PVDF, Standard, FFKM |
| A5E01163684 |
Kit, sensor for cable unit, PVDF, Digital, FFKM |
| A5E01163685 |
Spare, 316L stainless steel mounting bracket |
| A5E01163686 |
Spare, PROFIBUS connector, IP65 versions only |
| A5E03251681 |
Kit, CLS200 standard, transmitter |
