Name: Honeywell Model 425 Wing Union Pressure Transmitter with 0 psi to 5000 psi Range ±0.1% Accuracy and Inconel X-750 Diaphragm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Modell 425
Price: 152.00 USD
Availability: InStock

Zu Hause > produits > Präzisionsdrucksensor >

Honeywell Model 425 Wing Union Pressure Transmitter with 0 psi to 5000 psi Range ±0.1% Accuracy and Inconel X-750 Diaphragm

0 psi to 5000 psi Pressure Transmitter

±0.1% accuracy Wing Union Pressure Sensor

Inconel X-750 diaphragm Model 425 Transmitter

Markenname:

Honeywell

Zertifizierung:

Modellnummer:

Modell 425

Kontakt mit uns

Bitte um ein Angebot

Honeywell Model 425 Wing Union Pressure Transmitter with 0 psi to 5000 psi Range ±0.1% Accuracy and Inconel X-750 Diaphragm

Einzelheiten zum Produkt

Druckbereich:

0 psi bis 5000 psi; 0 psi bis 6000 psi; 0 bar bis 350 bar; 0 bar bis 10000 psi; 0 bar bis 700 bar; 0

Kalibrierung:

5-Punkte-Kalibrierung, 2-Zeilen-Skala

Genauigkeit:

± 0,1% der besten Anpassungslinie (BFL); ± 0,2% der besten Anpassungslinie (BFL), 5-Punkte-Kalibrier

Ausgabe:

4 mA bis 20 mA

Betriebstemperatur:

-43 ℃ bis 93 ℃ (-45 ℉ bis 200 ℉)

Hervorheben:

0 psi to 5000 psi Pressure Transmitter

±0.1% accuracy Wing Union Pressure Sensor

Inconel X-750 diaphragm Model 425 Transmitter

Zahlungs- und Versandbedingungen

Min Bestellmenge

1pcs

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 Arbeitstage

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Moneygram, Western Union

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

Beste Preis erhalten

Honeywell Model DS Digital Pressure Transducer with 0.1% Accuracy 1200 Hz Analog Response and 380 Readings/Second

Beste Preis erhalten

Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction

Beste Preis erhalten

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

Beste Preis erhalten

Kontakt mit uns

86--17719566736

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

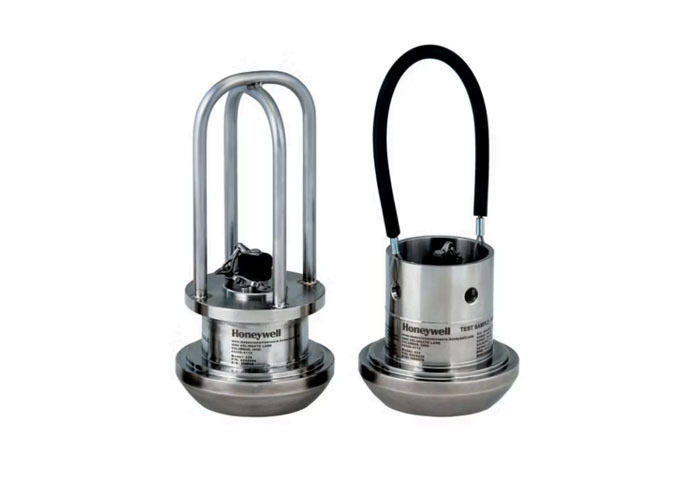

Honeywell Model 425 Wing Union Pressure Transmitter

The Model 425 Wing Union Pressure Transmitter is robust and durable. It utilizes the 1502 Wing Union and is suitable for both onshore and offshore installations. The independent pressure-sensing diaphragm minimizes zero drift during torquing and eliminates long-term signal deviation in electric fields. The sensor diaphragm of Model 425 is integrated with the wing union. It adopts a fully welded construction and a patented electron beam welding process with deep penetration, ensuring seal integrity under all electric field conditions. A special assembly process is applied to the Model 425 Transmitter to protect its components from vibration and shock, enabling reliable operation in harsh environments such as rupture or gluing systems. The 1502 Wing Union-compatible assembly is equipped with an Inconel® X-750 diaphragm, capable of handling abrasive and highly corrosive media. This device meets the corrosion resistance requirements of NACE Standard MR-01-75 (1980).

Key Features

Long-life X-750 material
Rugged and robust design
RFI/EMI protection
Intrinsically safe
Fast delivery service
Accuracy of 0.2%
Optional single-board temperature sensor
CE certification

Potential Applications

Oil and gas drilling
Mud pumps / mud logging
Fracturing and cementing
Acidizing
Wellhead measurement
Risers
Stimulation

Technical Specifications

Category	Item	Details
Pressure Range	Pressure Range	0 psi to 5000 psi; 0 psi to 6000 psi; 0 bar to 350 bar; 0 bar to 10000 psi; 0 bar to 700 bar; 0 bar to 15000 psi; 0 bar to 10000 bar, etc.
Pressure Range	Accuracy	±0.1% of Best Fit Line (BFL); ±0.2% of Best Fit Line (BFL), 5-point calibration at 50% and 100% Full Scale (FS)
Calibration	5-point calibration	2-line full scale
Output	4mA to 20mA
Environment	Operating Temperature	-43℃ to 93℃ (-45℉ to 200℉)
	Compensation Temperature	-34℃ to 82℃ (-30℉ to 180℉)
	Temperature Effect - Zero	0.018 % of Reading/℃ (0.01% of Full Scale/℉)
	Temperature Effect - Span	0.018 % of Reading/℃ (0.01% of Full Scale/℉)
	Sealing	Hermetic IP68/NEMA 6P
	Electrical	Supply Voltage: 9 Vdc to 28 Vdc Insulation Resistance: > 1000 mΩ at 50 Vdc Maximum Loop Resistance: 950 Ω (at 28V), reduced to 0 Ω (at 9V) Circuit Protection: Reverse polarity protection for power supply summary RFI/EMI Protection: Noise immunity from 5000Hz to 1GHz Frequency Response: Frequency response from 10Hz up to 2500Hz max; customer-specified and factory-installed filters are used to minimize (interference) Zero & Span Adjustable: Field adjustable by removing the connector Loop Calibration Data: Included Air Terminal (Standard): NIS-3102E-14S-2P, equivalent to 4-pin hermetic stainless steel
Internal Amplifier	Amplifier Specs	Intrinsically safe large type: Option 2n (2N)***
	Output Signal	4mA to 20mA
	Input Power (Voltage)	9 Vdc to 28 Vdc
	Input Power (Current)	4mA to 24mA
	Frequency Response (Amplifier)	2500Hz
	Power Supply Rejection	60db
	Operating Temperature	-43℃ to 93℃ (-45℉ to 200℉)
Mechanical	Overload, Safety	300% of rated pressure or 1502 force class (limit of 1502 fittings)
	Pressure Port	1502 Wing Union, 5.1mm [2in] pipe, exposed threads
	Wetted Material	Inconel X-750
	Weight	2222 g [6 lb]
	Housing Material	316L (stainless steel with welded and molded engraved symbol labels)
