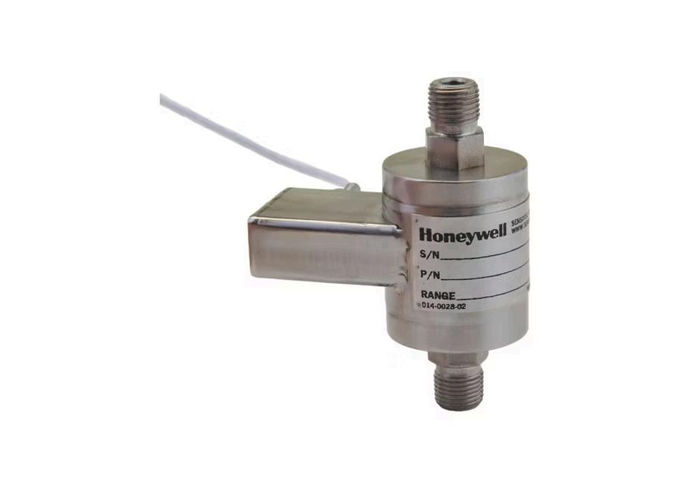

Name: Honeywell Model P-30-P Subminiature Wet/Wet Differential Pressure Transducer with 0.3% Accuracy 5 psid to 2000 psid Range and 17-4 PH Stainless Steel Wetted Material
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Modell P-30-P
Price: 152.00 USD
Availability: InStock

Zu Hause > produits > Präzisionsdrucksensor >

Honeywell Model P-30-P Subminiature Wet/Wet Differential Pressure Transducer with 0.3% Accuracy 5 psid to 2000 psid Range and 17-4 PH Stainless Steel Wetted Material

0.3% Accuracy Differential Pressure Transducer

5 psid to 2000 psid Pressure Sensor

17-4 PH Stainless Steel Wet/Wet Differential Pressure Transducer

Markenname:

Honeywell

Modellnummer:

Modell P-30-P

Kontakt mit uns

Bitte um ein Angebot

Honeywell Model P-30-P Subminiature Wet/Wet Differential Pressure Transducer with 0.3% Accuracy 5 psid to 2000 psid Range and 17-4 PH Stainless Steel Wetted Material

Einzelheiten zum Produkt

Druckbereiche (psid):

5, 10, 15, 25, 50, 75, 100, 150, 200, 300, 500, 750, 1000, 2000

Genauigkeit:

±0,3 % vom Endwert

Linearität:

±0,2 % vom Skalenendwert (typisch)

Hysterese:

±0,1 % vom Skalenendwert (typisch)

Nichtaufnahmebarkeit:

±0,1 % vom Skalenendwert (typisch)

Hervorheben:

0.3% Accuracy Differential Pressure Transducer

5 psid to 2000 psid Pressure Sensor

17-4 PH Stainless Steel Wet/Wet Differential Pressure Transducer

Zahlungs- und Versandbedingungen

Min Bestellmenge

Honeywell

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 Arbeitstage

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

Beste Preis erhalten

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Beste Preis erhalten

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Beste Preis erhalten

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Beste Preis erhalten

Kontakt mit uns

86--17719566736

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Honeywell Model P-30-P Subminiature Wet/Wet Differential Pressure Transducer

Product Overview

The Model P-30-P wet/wet differential pressure transducer is a subminiature unit uniquely suited for aerospace, chemical, or nuclear applications. This precision instrument features small size, bidirectional overload protection, wide temperature compensation, high natural frequencies, and is manufactured from 17-4 PH stainless steel wetted material.

Key Features

0.3% accuracy
5 psid to 2000 psid range
High frequency response
Lightweight construction
Compact design

Performance Specifications

Characteristic	Measure
Pressure ranges (psid)	5, 10, 15, 25, 50, 75, 100, 150, 200, 300, 500, 750, 1000, 2000
Accuracy	±0.3% full scale
Linearity	±0.2% full scale (typical)
Hysteresis	±0.1% full scale (typical)
Non-repeatability	±0.1% full scale (typical)
Output (standard)	5 psid to 25 psid: 100 mV (nominal) 50 psid to 2000 psid: 2 mV/V (nominal)
Line pressure	5 psid to 25 psid: 250 psi 50 psid to 2000 psid: 500 psi or 2X full scale (whichever is higher) up to 2000 psi
Resolution	Infinite

Environmental Specifications

Characteristic	Measure
Temperature, operating	-54°C to 121°C [-65°F to 250°F]
Temperature, compensated	16°C to 71°C [60°F to 160°F]
Temperature effect, zero	5 psid to 25 psid: ±2.0% full scale/100°F 50 psid to 2000 psid: ±1.0% reading/100°F
Temperature effect, span	5 psid to 25 psid: ±2.0% full scale/100°F 50 psid to 2000 psid: ±1.0% reading/100°F

Electrical Specifications

Characteristic	Measure
Strain gage type	5 psid to 25 psid: Bonded semiconductor 50 psid to 2000 psid: Bonded foil
Excitation (calibration)	10 Vdc
Bridge resistance	5 psid to 25 psid: 500 ohm 50 psid to 2000 psid: 350 ohm
Shunt calibration data	Included
Elec. termination (std)	Teflon cable 1.5 m [5 ft]

Mechanical Specifications

Characteristic	Measure
Media	Gas, liquid
Overload-safe	Max. line pressure either side
Pressure port	1/8-27 NPT male: 7/16 hex
Wetted parts material	17-4 PH stainless steel
Case material	Stainless steel

Range Codes

Range Code	Range	Range Code	Range
AT	5 psid	CJ	150 psid
AV	10 psid	CL	200 psid
BJ	15 psid	CP	300 psid
BL	25 psid	CR	500 psid
BN	50 psid	CT	750 psid
BP	75 psid	CV	1000 psid
BR	100 psid	DL	2000 psid

Wiring Codes (Connector/Unamplified)

Wire Color	Connection
Red	(+) excitation
Black	(-) excitation
Green	(-) output
White	(+) output
