Name: Model LM Industrial Gage Pressure Transducer with 1 psig to 10,000 psig Range ±0.50% FS BFSL Accuracy and 50% Over Capacity Safe Overload
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Modell LM
Price: 152.00 USD
Availability: InStock

Zu Hause > produits > Präzisionsdrucksensor >

Model LM Industrial Gage Pressure Transducer with 1 psig to 10,000 psig Range ±0.50% FS BFSL Accuracy and 50% Over Capacity Safe Overload

1 psig to 10000 psig Pressure Transducer

±0.50% FS BFSL Gage Pressure Sensor

50% Over Capacity Industrial Pressure Sensor

Markenname:

Honeywell

Modellnummer:

Modell LM

Kontakt mit uns

Bitte um ein Angebot

Model LM Industrial Gage Pressure Transducer with 1 psig to 10,000 psig Range ±0.50% FS BFSL Accuracy and 50% Over Capacity Safe Overload

Einzelheiten zum Produkt

Genauigkeit:

±0,5 % vom Endwert

Temperatur, Betrieb:

-54 °C bis 121 °C [-65 °F bis 250 °F]

Temperatureinfluss, Spanne:

0,02 % Messwert/°F

Temperatureffekt, Null:

0,01 % vom Skalenendwert/°F

Temperatur, kompensiert:

16 °C bis 71 °C [60 °F bis 160 °F]

Hervorheben:

1 psig to 10000 psig Pressure Transducer

±0.50% FS BFSL Gage Pressure Sensor

50% Over Capacity Industrial Pressure Sensor

Zahlungs- und Versandbedingungen

Min Bestellmenge

1pcs

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 Arbeitstage

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Beste Preis erhalten

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Beste Preis erhalten

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Beste Preis erhalten

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Beste Preis erhalten

Kontakt mit uns

86--17719566736

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

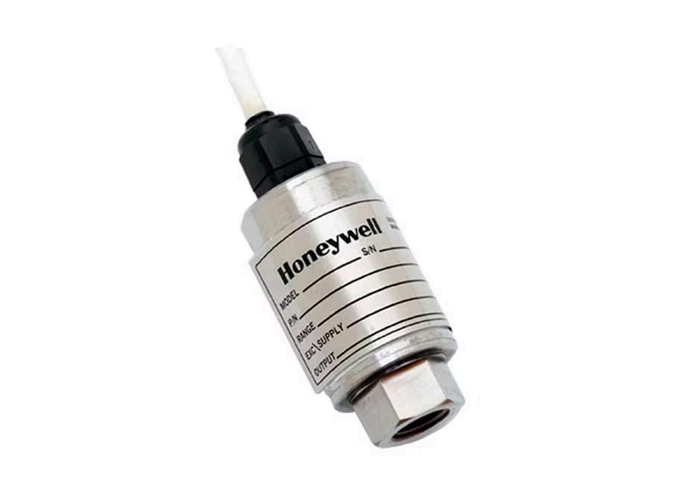

Model LM Industrial Gage Pressure Transducers

1 psig to 10,000 psig range with mV/V output and ±0.50% FS BFSL accuracy.

Overview

The Model LM pressure transducer is a cost-efficient, general-purpose gage-only device. Each unit is constructed with durable materials based on pressure range:

HA C276/316 Stainless Steel for ranges ≤100 psi
17-4 PH Stainless Steel for ranges 100-1500 psi
15-5 PH Stainless Steel for ranges ≥2000 psi

Designed for dry, rugged environments, it safely accepts both gas and liquid pressure overloads up to 50% over capacity.

Key Features

1 psig to 10,000 psig range
Integral cable connection
1/4-18 NPT female pressure port
mV/V output
0.5% accuracy

Industry Applications

Energy
Manufacturing
Utilities

Performance Specifications

Accuracy

±0.5% full scale

Environmental Specifications

Temperature, operating	-54°C to 121°C [-65°F to 250°F]
Temperature, compensated	16°C to 71°C [60°F to 160°F]
Temperature effect, zero	0.01% full scale/°F
Temperature effect, span	0.02% reading/°F

Electrical Specifications

Excitation (calibration)	10 Vdc
Excitation (acceptable)	10 Vdc
Insulation resistance	5000 mOhm @ 50 Vdc
Electrical termination (std)	Cable 0.91 m [3 ft]

Mechanical Specifications

Media	All gases/liquids compatible with wetted parts
Overload, safe	50% over capacity
Pressure port	1/4-18 NPT female
Wetted parts	Stainless steel
Weight	170 g [6 oz]
Case material	Stainless steel

Option Codes

Pressure ranges	1, 2.5, 5, 15, 25, 50, 75, 100, 150, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000 psig
Temperature compensation	60°F to 160°F
Internal amplifiers	Unamplified, mV/V output
Pressure ports	1/4-18 NPT female
Electrical termination	Cable 0.91 m [3 ft]
Special calibration	10 point (5 up/5 down) @ 20% increments 20 point (10 up/10 down) @ 10% increments

Wiring Codes

Cable	Unamplified
Red	(+) Excitation
Black	(-) Excitation
Green	(-) Output
White	(+) Output

Part Numbers

Part Number	Description
060-2345-08	BP211CR, 1A, 2U, 5A, 6FA:MODEL LM, 500 PSI
060-2345-10	BP211CV, 1A, 2U, 5A, 6FA:MODEL LM, 1,000 PSI
060-2345-12	BP211DN, 1A, 2U, 5A, 6FA:MODEL LM, 3,000 PSI
060-2345-12-06	MODEL LM, 3,000 PSIG
060-2345-14	BP211DR, 1A, 2U, 5A, 6FA:MODEL LM, 5,000 PSI
060-2345-15-03	BP211DT, 1A, 2U, 5A, 6FA, 9A:MODEL LM, 7,499
060-2345-15G	BP211DT, 1A, 2U, 5A, 6FA:MODEL LM, 7,500 PSI
060-2345-16	BP211DV, 1A, 2U, 5A, 6FA:MODEL LM, 10,001
060-3315-02	BP211BR, 1A, 2U, 5A, 6A:MODEL LM, 100 PSI
060-R665-01	BP211DR, 1A, 2U, 5F, 6FA:MODEL LM 5,000 PSIG
