Portable Ultrasonic Weather Station with IP65 Waterproof Rating, 7-inch Resistive Touchscreen, and 50 Hours Operating Time

Herkunftsort:

China

Markenname:

KunQuan

Zertifizierung:

Modellnummer:

KQL-QXY

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Stromversorgung:

Eingebauter 12,6 V Li-Akku 10 Ah + Solar 18 V/30 W + 24 V DC

Schutzklasse:

IP65 vollständig wasserdicht

Resistiver 7-Zoll-Touchscreen

Betriebszeit:

50 Stunden (Bildschirm-aus-Modus)

Kommunikation:

4G (Cat-1) + RS485 (Modbus/MQTT)

Gewicht:

Hauptgerät 3,9 kg, Ständer 2,0 kg

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 Werktage

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Beste Preis erhalten

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Beste Preis erhalten

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Beste Preis erhalten

KQS-GTM Rohrförmiges mehrschichtiges Bodenfeuchtigkeitsüberwachungsgerät mit FDR-Technologie für mehrschichtige Überwachung (10/20/30/40 cm) und Solarenergie

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

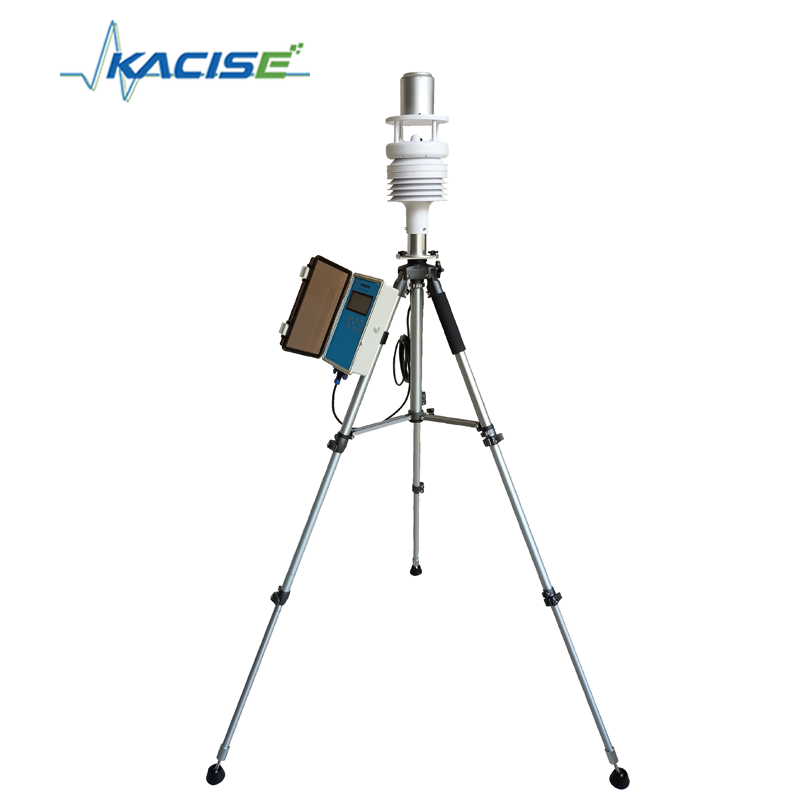

KQL-QXY Portable Ultrasonic Weather Station (Touchscreen Version)

Product Overview

The portable ultrasonic weather station (touchscreen version) is a lightweight, integrated meteorological system that combines an internal power supply (lithium battery pack), data acquisition, touchscreen display, data storage, data analysis, and data uploading (via 4G communication). It is designed for convenient environmental and meteorological measurements during field operations.

The device measures basic meteorological parameters including wind speed, wind direction, air temperature, air humidity, and atmospheric pressure. Measurement parameters are customizable and can be expanded according to customer requirements.

The system supports both solar panel and 24V DC power supply, which can not only power the device but also charge the built-in lithium battery pack.

This product is widely used in agricultural irrigation, environmental monitoring, field scientific research, transportation, and other applications.

Technical Specifications

Function Item	Technical Parameters	Remarks
Power supply	① Built-in 12.6V lithium battery pack, 10Ah capacity; ② External 18V/30W flexible foldable solar panel; ③ External 24V DC power supply	Solar panel and 24V DC input can both power the device and charge the internal battery
Power consumption	Test conditions: ① Standard five parameters (wind speed, wind direction, temperature, humidity, pressure); ② 4G communication enabled but no data transmission	Screen on: 4W / 12.6V; Screen off: 2.4W / 12.6V
Charging time	< 10 hours, max charging current 1A
Operating time	50 hours (screen off mode)
Display	7-inch resistive touchscreen
Data storage	Built-in storage up to 512MB, supports up to 1,000,000 data records	Logging interval adjustable, minimum 1 minute
Data upload	Minimum upload interval: 1 minute
Data access	① Cloud web platform ② Mobile app ③ Touchscreen display
Communication methods	Wireless: 4G (Cat-1); Wired: RS485
Communication protocols	Modbus, MQTT, proprietary protocol	Can be customized
Operating environment	Temperature: -20°C to 70°C; Humidity: 0-100% RH	Optional ultra-low-temperature touchscreen: -40°C to 70°C
Protection rating	IP65 (fully waterproof)
Mounting stand	Height: 0.9 m (collapsed) to 1.9 m (extended); Material: aluminum alloy + ABS plastic; Surface treatment: anodized + passivated
Product weight	Main unit: 3.9 kg; Stand: 2.0 kg; Packaging box: 7.6 kg
Package dimensions	710 mm × 420 mm × 240 mm

Environmental Measurement Parameters

Environmental Parameter	Range	Accuracy	Resolution
Ultrasonic wind speed	0-70 m/s	Starting wind speed ≤ 0.8 m/s; ±(0.5 + 0.02 rdg) m/s	0.01 m/s
Ultrasonic wind direction	0-360°	±3°	1°
Atmospheric temperature	-40 to 80°C	±0.3°C	0.1°C
Atmospheric humidity	0-100% RH	±5% RH	0.1% RH
Atmospheric pressure	300-1100 hPa	±1 hPa (at 25°C)	0.1 hPa
Rainfall intensity	0-4 mm/min	±4% (laboratory static test, rainfall intensity 2 mm/min), with daily rainfall accumulation	0.03 mm
Illuminance	0-200,000 Lux (outdoor)	±4%	1 Lux
Solar total radiation	0-2000 W/m²	±3% (with daily radiation accumulation)	1 W/m²
CO₂	0-5000 ppm	±(50 ppm + 5% rdg)	1 ppm
PM2.5 / PM10	0-1000 μg/m³	≤100 μg/m³: ±10 μg/m³; >100 μg/m³: ±10% rdg (calibrated with TSI 8530 under 25±2°C, 50±10% RH)	1 μg/m³
CO	0-1000 ppm	≤±3% rdg (25°C)	0.1 ppm
NO₂	0-20 ppm	≤±3% rdg (25°C)	0.01 ppm
SO₂	0-20 ppm	≤±3% rdg (25°C)	0.01 ppm
O₃	0-10 ppm	≤±3% rdg (25°C)	0.01 ppm
Electronic compass	0-360°	±5°	1°
GPS	Longitude (-180-180°), Latitude (-90-90°), Altitude (-500-9000 m)	≤10 m (longitude/latitude), ≤3 m (altitude)	0.1 s (lat/long), 1 m (altitude)
