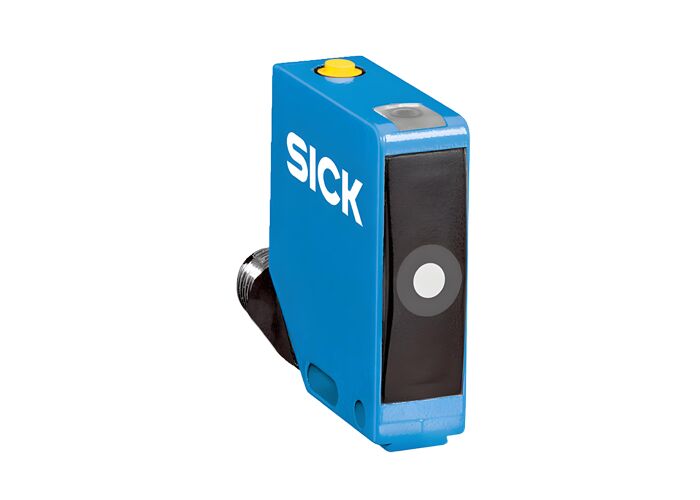

UC12 Ultrasonic distance sensors

UC12 ultrasonic distance sensor

Ultrasonic transducer sensor with warranty

Distance measurement sensor UC12

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Grenzbereich::

250 mm / 350 mm (je nach Typ)

Arbeitsbereich::

20 mm ... 250 mm (je nach Typ)

Wiederholbarkeit:

± 0,15 %

Auflösung:

≥ 0,1 mm

Ansprechzeit:

30 ms

Hervorheben:

UC12 ultrasonic distance sensor

Ultrasonic transducer sensor with warranty

Distance measurement sensor UC12

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 ARBEITSTAGE

Zahlungsbedingungen

MoneyGram, Western Union, T/T, D/P, D/A, L/C

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

UC12 Ultrasonic distance sensors

Beste Preis erhalten

UC30 Ultrasonic distance sensors

Beste Preis erhalten

UD18 Ultrasonic distance sensors

Beste Preis erhalten

UM12 Ultrasonic distance sensors

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

UC12 Ultrasonic Distance Sensors

The UC12 ultrasonic distance sensor family features ultrasonic technology housed in an industry-proven design. These rugged cubic metal housing sensors combine ease of use with the reliability of ultrasonic technology, offering complementary digital outputs with IO-Link for maximum flexibility.

Key Benefits

Proven cubic housing shape ensures compatibility with other technologies
High flexibility through IO-Link enables dynamic adaptation to changing application requirements
Complementary digital outputs detect cable breakage to prevent production errors
Integrated temperature compensation maintains high measurement accuracy for optimal process quality
Immunity to external factors allows reliable measurements in dirty, dusty, humid, and foggy conditions

Product Features

Rugged and proven housing design
Fast teach-in of complementary digital outputs via pushbutton or IO-Link
Optimal background suppression
Integrated temperature compensation
Detection, measurement, or positioning with ultrasound technology
Reliable performance regardless of material color, transparency, gloss, or ambient light

Technical Parameters

Category	Details
Measuring Range	Operating range: 20 mm ... 250 mm (depending on type) Limiting range: 250 mm / 350 mm (depending on type)
Resolution	≥ 0.1 mm
Repeatability	± 0.15 %
Response Time	30 ms
Output Time	8 ms
Switching Frequency	25 Hz
Digital Output	Type: Push-pull:PNP/NPN / PNP / NPN (depending on type)
IO-Link	✓, IO-Link V1.1
Enclosure Rating	IP65 / IP67
Sending Axis	Straight
Ambient Temperature, Operation	-25 °C ... +70 °C

Model Selection

Product Variant	Part No.	Min. Measuring Range	Max. Measuring Range	Measuring Frequency
UC12-1223E	6077703	55 mm	250 mm	500 kHz
UC12-1123E	6077702	20 mm	150 mm	380 kHz
