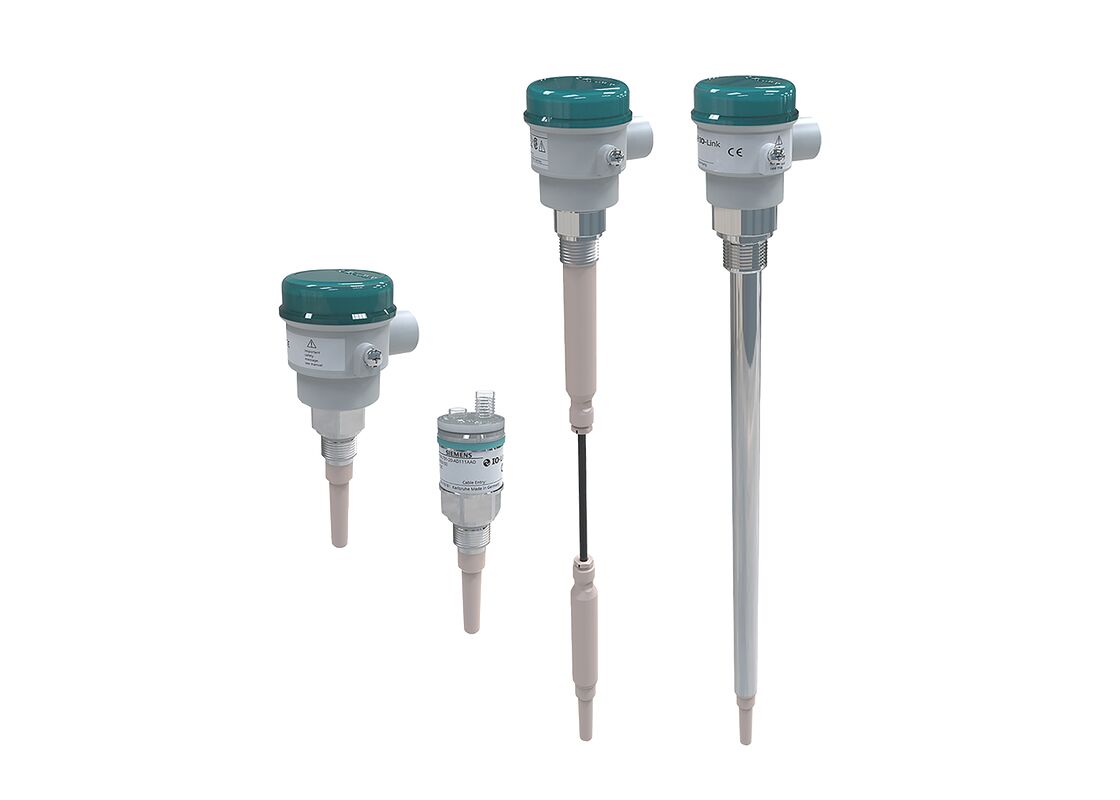

SITRANS LCS100 is a versatile point level switch designed for detecting level in liquids, solids, slurries, foam, and interface applications. Its compact design makes it ideal for confined spaces, with options for plastic or stainless steel process connections and flexible rod/cable probe extensions.
SITRANS LCS100 offers flexible insertion lengths starting at 92 mm (3.6 inches) and provides versatile performance in various applications across vessels and pipes. Its advanced design ensures accurate, repeatable switchpoint performance.
The PPS probe (optional PVDF) and optional PEEK materials provide excellent chemical resistance with an operating temperature range from -40 to +125°C (-40 to +257°F). The fully potted design ensures reliability in vibrating environments like agitated tanks. When used with SensGuard protection cover, the LCS100 is protected from shearing, impact, and abrasion in demanding processes.
Available with stainless steel or polyester enclosures and stainless steel or PPS process connection options.
| Specification |
Compact (7ML701 and 7ML700) |
Extended (7ML702 and 7ML703) |
| Measuring Principle |
Capacitive level detection |
Capacitive level detection |
| Measured Variable |
Change in picoFarad (pF) |
Change in picoFarad (pF) |
| Repeatability |
2 mm (0.08 inch) |
2 mm (0.08 inch) |
| Output Signal |
Alarm output: 8/16 mA or 4...20 mA, 2-wire loop or IO-Link, PNP, NPN
Switch output: 4-wire relay (general purpose) or transistor (intrinsically safe)
Fail-safe mode: Min. or max.
|
Alarm output: 8/16 mA or 4...20 mA, 2-wire loop or IO-Link, PNP, NPN
*IO-Link not available with Cable version
Switch output: 4-wire relay (general purpose) or transistor (intrinsically safe)
Fail-safe mode: Min. or max.
|
| Ambient Conditions |
Location: Indoor and outdoor
Ambient temperature: -40...+85°C (-40...+185°F)
Storage temperature: -40...+80°C (-40...+176°F)
Installation category: I
Pollution degree: 4
|
Location: Indoor and outdoor
Ambient temperature: -40...+85°C (-40...+185°F)
Storage temperature: -40...+80°C (-40...+176°F)
Installation category: I
Pollution degree: 4
|
| Medium Conditions |
Relative dielectric constant εr: Min. 1.5
Process temperature: -40...+125°C (-40...+257°F)
Pressure (vessel): -1...25 bar (363 psi) - Stainless
-1...10 bar (146 psi) - PPS
|
Relative dielectric constant εr: Min. 1.5
Process temperature: -40...+125°C (-40...+257°F)
Pressure (vessel): -1...25 bar (363 psi) - Rod extensions
-1...10 bar (146 psi) - Cable extensions
|
| Degree of Protection |
Enclosure Ø65 mm: Type 4X/IP68
Enclosure Ø35 mm: Type 4X/IP68
Cable inlet: ½" NPT or M20 x 1.5
|
Enclosure Ø65 mm: Type 4X/IP68
Cable inlet: ½" NPT or M20 x 1.5
|
| Sensor Length (Nominal) |
92 mm (3.6 inch) |
300...4,000 mm (11.8...157 inch) - Rod version
400...20,000 mm (15.7...787 inch) - Cable version |
| Process Connection Material |
Connection: 316L stainless steel or PPS; Process seal: FKM (optional FFKM); Sensor: PEEK or PPS or PVDF |
Connection: 316L stainless steel or PPS; Process seal: FKM (optional FFKM); Sensor: PPS or PVDF; Extension: Pipe 316L Cable: FEP jacketed |
| Connection (Enclosure 65 mm) |
Terminal block or M12 x 1 according to IEC 61076-2-101 |
Terminal block or M12 x 1 according to IEC 61076-2-101 |
| Process Connection |
Thread: G ½", G ¾", G 1", NPT ¾"; Tri-clamp DN25 (1"), DN40 (1½"), DN50 (2"); DIN 32676 Type A and Type C; Flange DN 25, 40, 50; ASME 1", 1½", 2" |
Thread: G ¾", G 1", NPT ¾"; Flange DN 25, 40, 50; ASME 1", 1½", 2"; Adapters for G 1½", NPT 1¼", NPT 1½" |
| Power Supply |
Standard:
• 4-wire with relay: 9...33 V DC
• 2-wire with 8/16 or 4...20 mA loop: 9...33 V DC
• IO-Link/PNP/NPN: 10...30 V DC
Intrinsically Safe:
• 2-wire with 8/16 or 4...20 mA loop: 10.8...30 V DC
|
Standard:
• 4-wire with relay: 9...33 V DC
• 2-wire with 8/16 or 4...20 mA loop: 9...33 V DC
• IO-Link/PNP/NPN: 10...30 V DC
Intrinsically Safe:
• 2-wire with 8/16 or 4...20 mA loop: 10.8...30 V DC
|
| Certificates and Approvals |
General purpose: CE, UKCA, FM, CSA
ATEX II 1G, 1/2G Ex ia IIC
ATEX II 1D, 1/2D Ex ia IIIC
IEC Ex ia IIC, IEC Ex ia IIIC
FM/CSA IS Class I, II, III, Div. 1, Groups A...G
Overfill protection: WHG (Germany) VLAREM
|
General purpose: CE, UKCA, FM, CSA
ATEX II 1G, 1/2G Ex ia IIC
ATEX II 1D, 1/2D Ex ia IIIC
IEC Ex ia IIC, IEC Ex ia IIIC
FM/CSA IS Class I, II, III, Div. 1, Groups A...G
Overfill protection: WHG (Germany) VLAREM
|
