Name: KSLV652 High-Precision Industrial Level Sensor with FEP Probe Material and IP65 Protection for Accurate Level Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSLV652
Price: 1,000.10 USD
Availability: InStock

Zu Hause > produits > Ultraschallwandler-Sensor >

KSLV652 High-Precision Industrial Level Sensor with FEP Probe Material and IP65 Protection for Accurate Level Measurement

Herkunftsort:

China

Markenname:

KACISE

Zertifizierung:

Modellnummer:

KSLV652

Kontakt mit uns

Bitte um ein Angebot

KSLV652 High-Precision Industrial Level Sensor with FEP Probe Material and IP65 Protection for Accurate Level Measurement

Einzelheiten zum Produkt

Bestelllänge L:

50–2000 mm (mit Schutzrohr, max. 6000 mm)

Sondendurchmesser:

∅10 mm

Druckbereich:

-0,1 – 2,5 MPa

Langfristige Stabilität:

≤0,1 % FS/Jahr

Temperaturdrift:

≤0,02 % FS/℃ (innerhalb von -40 – 80 ℃)

Schutzstufe:

IP65

Sondenmaterial:

FEP

Bestelllänge:

50–2000 mm (maximal 6000 mm)

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Verpackung Informationen

Jedes Gerät verfügt

Lieferzeit

5-8 Werktage

Zahlungsbedingungen

L/C, D/A, D/P, T/T, Western Union

Versorgungsmaterial-Fähigkeit

1000 Stück/Stücke pro Woche verhandelbar

Verwandte Produkte

Video

Ultraschalldes wasser-6V/hohe Genauigkeits-Füllstand-Meter Kraftstofftank-des Niveauschalter-RS485 5m

Beste Preis erhalten

Video

Wasserdichter NPT PTFE RS485 gab Ultraschallleistungsaufnahme der wasserspiegel-Sensor-geringen Energie aus

Beste Preis erhalten

Video

24V 3000mm RS485 0,2mA Ultraschalltransducer Sensor mit einer Reaktionszeit von < 50 ms

Beste Preis erhalten

Video

Wasserspiegel-mit Ultraschallsensor Wandler/RS485 PTFE korrosionsbeständiger waagerecht ausgerichteter

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

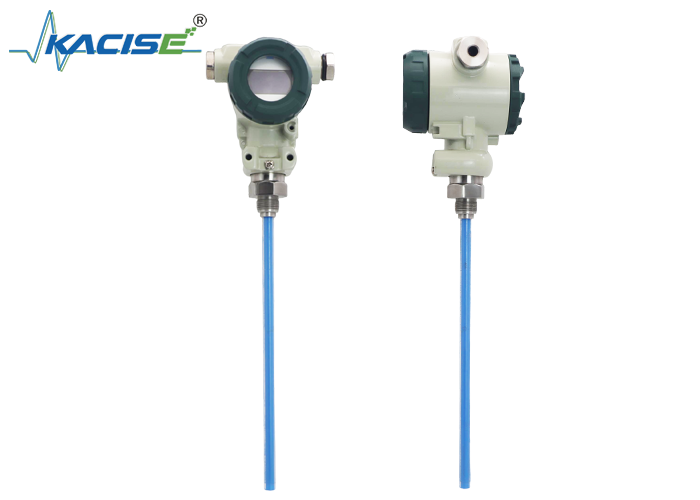

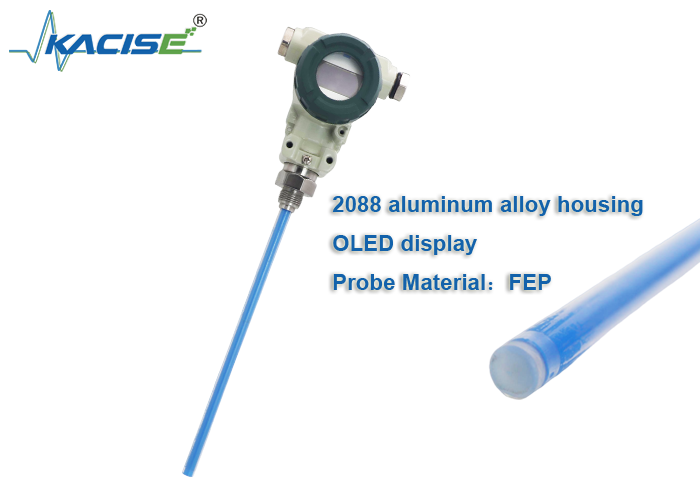

The KSLV652 is a high-precision capacitive level sensor specifically designed for industrial level measurement. It features a 2088 aluminum alloy housing, providing a robust and durable structure, and is equipped with an OLED display for real-time level data visualization, making on-site observation and commissioning more convenient.

The sensor adopts a high-performance FEP probe material, offering excellent corrosion resistance and high-temperature tolerance. It is suitable for various demanding industrial environments, including chemical processing, water treatment, oil storage tanks, food processing, and industrial automation applications.

The KSLV652 offers high measurement accuracy, strong stability, and easy installation. It supports standard 4–20 mA industrial signal output, allowing seamless integration with PLC, DCS, or other automation control systems, enabling continuous and reliable level monitoring.

Product Features

High-Precision Measurement
Wide Temperature Adaptability
Rugged Industrial-Grade Structure
OLED Real-Time Display
High Stability with Low Drift
Multiple Signal Outputs
Flexible Installation
Multiple Length Options

Typical Applications

Petrochemical Industry
Water Treatment Systems
Food and Beverage Industry
Pharmaceutical Industry
Storage Tank Level Monitoring
Industrial Automation Equipment

KSLV652 High-Precision Industrial Level Sensor with FEP Probe Material and IP65 Protection for Accurate Level Measurement 0

Technical Parameters

Parameter	Specification
Order Length L	50–2000 mm (with protective tube, max 6000 mm)
Accuracy	Absolute error ±3 mm (L ≤ 300 mm), Accuracy Class 1.0 (300 < L ≤ 700 mm), Accuracy Class 0.5 (700 < L ≤ 2000 mm)
Medium Temperature	-40 – 120 ℃
Probe Temperature Resistance	-60 – 150 ℃

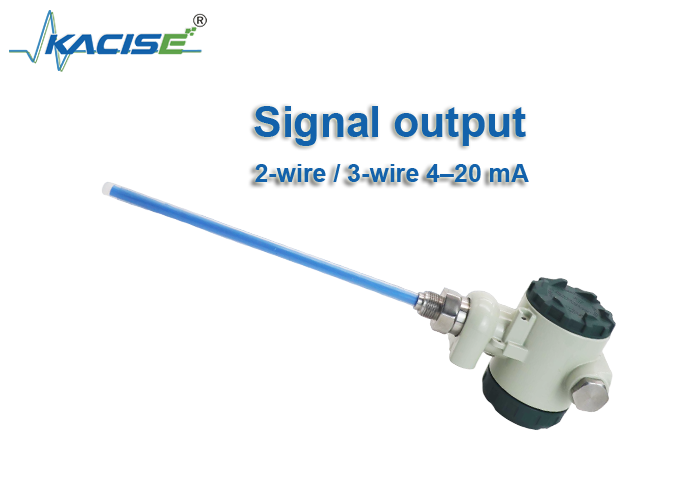

Signal Type	2-wire / 3-wire 4–20 mA
Supply Voltage	18–36 Vdc, typically 24 Vdc
Pressure Range	-0.1 – 2.5 MPa
Long-term Stability	≤0.1% FS/year
Temperature Drift	≤0.02% FS/℃ (within -40 – 80 ℃)
Protection Level	IP65
Probe Material	FEP
Probe Diameter	∅10 mm
Fixing Screw Material	SUS 304

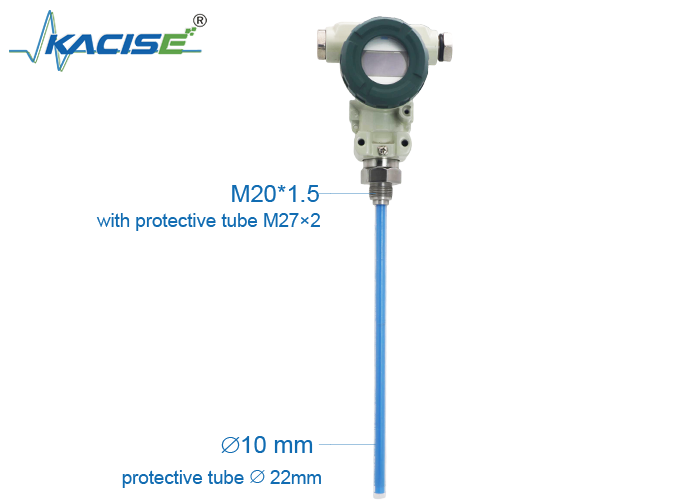

Mounting Method	Threaded installation M201.5 (with protective tube M272)
Dimensional Tolerance	±3 mm

KSLV652 Series Selection Table

Coding Format: KSLV652-①-②-③-④

Code①	Installation Method
1	External Thread M20*1.5
2	External Thread M27*2
F	Flange Connection, flange code e.g., DN25 → F25, generally according to HG/T 20592-2009 standard, material same as connector
Code②	Protective Tube
0	Without Protective Tube (default)
1	With Φ16 Stainless Steel Protective Tube
2	With Φ22 Stainless Steel Protective Tube
Code③	Output Signal Type	Power Voltage Range	Recommended Power Voltage
1	4–20 mA 2-wire	DC18–36V	DC24V
2	4–20 mA 3-wire	DC12–28V	DC24V
Code④	Order Length (mm)	Notes
□/□/□	Sensor Total Length / Upper Blind Zone / Lower Blind Zone	Total length is required; upper/lower blind zones filled according to order requirements. Mandatory for special orders; optional for standard products.
Note: For this series, the maximum length without a protective tube is 2000 mm; with a Φ16 mm protective tube, the maximum length is 1000 mm; with a Φ22 mm protective tube, the maximum length is 6000 mm.

Selection Example: KSLV652-F25-2-1-1500/300/30

Description:

Industrial standard universal level sensor, DN25 flange installation, with Φ22 stainless steel protective tube, 4–20 mA 2-wire signal output. Sensor total length: 1500 mm, upper blind zone: 300 mm, lower blind zone: 30 mm.
